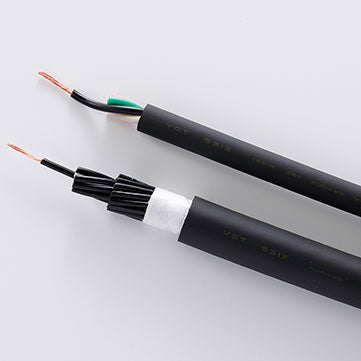

VCT 531XX (1coil/100m≒328ft)

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Made to order should be confirm with us.

Use

・Wiring to internal and external electrical equipment
・Wiring to electric equipment for movement at indoor and outdoor

Features
・VCT cables designed to Electrical Appliance and Material Safety Law（ 7 conductors or less） & UL・cUL standards
・Oil resistance, heat resistance（ 105℃）, movable
・Fine conductor
・Sheath mat type

Temperature range
・Fixed：-30 〜105℃※
※If you use it in temperature less than 0℃ , you should be careful about shocks,flexure, vibration and so on.

Bending radius
Fixed：4 times or more of the cable diameter

RoHS Directive
Conformity

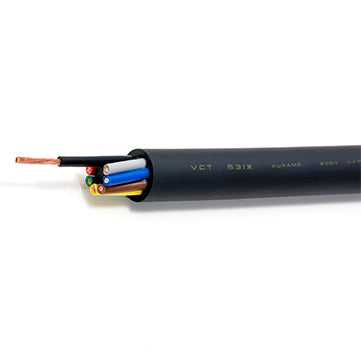

Construction

Conductor：Strands of wire composed of annealed copper
Insulation：Heat resistant PVC
Assembly：Circular
Tape：Tape wrap around cores if conductors are 12 or more
Sheath：Oil and heat resistant PVC (black)

Conductors identification

12 or less：Identification by color( in order of black, white, red, green, yellow, brown, blue, gray, orange, purple, pink and light green)
13 or more：Identification by number(marked on black insulation surface in order of 1, 2, 3, 4 and so on)
※4 conductor's identification are able to choose black, white, red and green/yellow

Adaptation standard

Example : 12 × 0.75mm2 (19AWG)

Attached Table

Allowable ampacity

Allowable ampacity (A) for cable is based on calculation under aerial one-cable and temperature at 30℃ , not repressenting a guaranteed value.
Allowable ampacity cable at ambient temperature abobe 30℃ is to be determined by multiplying the current value by the appropriate current reduction factorin the following table1.
The allowable ampacity for cable are the calculated by JCS0168, but not guaranteed.
　　　JCS0168…　“Calculation of the current rating of power cables for rated voltage up to and including 33kV”

Table1 Current reduction factors
