KETH6A-SWZ-FD 26AWGx4P

Product Description

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Make to order should be confirmed with us.

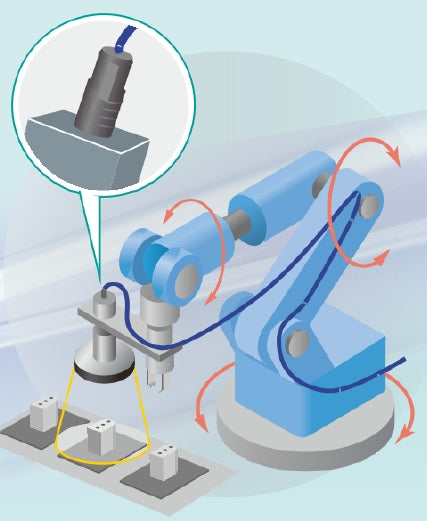

This cable is suitable for motion and can be used for Vision Guided Robotics.

Suitable for :

1. Industrial Robot: Torsional and Continuous rotations-Vision systems.
2. Turn table: Inspection and continuous torsional twisting.
3. C-Track cable carriers: High speed vision applications within cable carriers.

High Speed

Large high speed data capacities of 10Gbps

Noise resistance

Compared to standard braided shields, our spirally wound shield has very high resilience to twisting and tearing resulting in increased noise resistance.

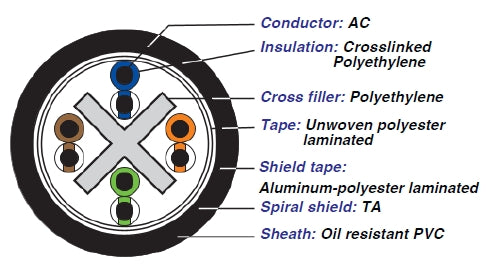

Cable Specification

1.Conductor: Fully annealed extra fine stranded bare copper.

2.Overall diameter: 7.65mm(0.301inch).

3.Outer jacket: Oil resistant PVC outer jacket
Standard Jacket colors:Black
※Different colors are also available.

(Teal, Blue, Light Blue, Green, Yellow, Pink)

4. Standard : UL444Listed (CM)
