ESM-1256-M

Product Description

For Quotation, please click the Contact Us button below.

This cable is suitable for motion and can be used
for Vision Guided Robotics.

ESM-1256-M□ ［□ cable length］ (in meters)

Suitable for:

1.Industrial Robot: Torsional and Continuous rotations-Vision systems.

2.Turn table: Inspection and continuous torsional twisting.

3.C-Track cable carriers: High speed vision applications within cable carriers.

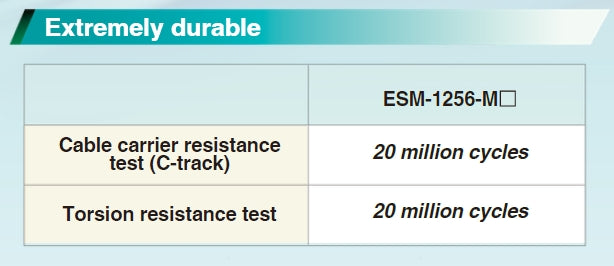

Extremely durable:

High Speed

Large high speed data capacities of 10 Gbps.

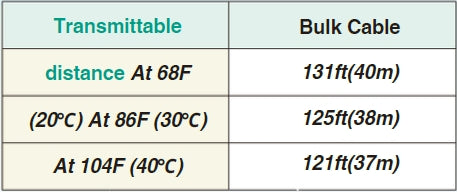

Transmittable Distance

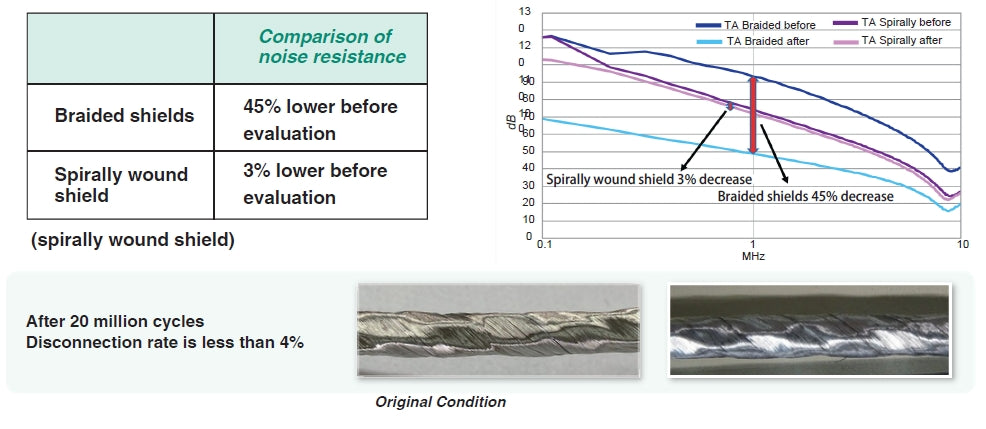

Noise resistance

Compared to standard braided shields, our spirally wound shield has very high resilience to twisting and tearing resulting in increased noise resistance.

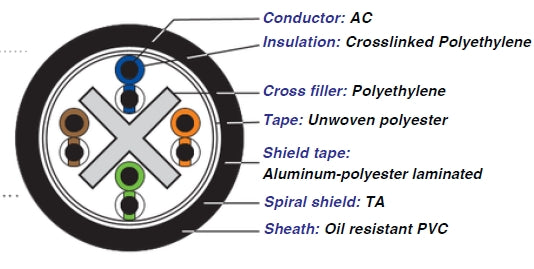

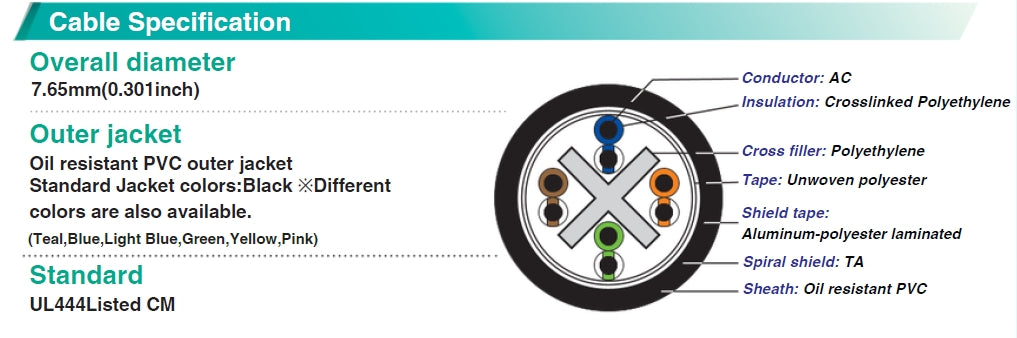

Cable Specification

Overall diameter : 7.65mm(0.301inch)

Outer jacket: Oil resistant PVC outer jacket

Standard Jacket colors: Black

※Different colors are also available.
(Teal,Blue,Light Blue,Green,Yellow,Pink)

Standard: UL444 Listed (CM)

Part Number

ESM-1256-M□  Please enter the cable length (in meters) in the □ section.

e.g.)   ESM-1256-M1   ----- 1 meter length

            ESM-1256-M5  -----  5 meter length

            ESM-1256-M10----- 10 meter length

            ESM-1256-M20----- 20 meter length

            ESM-1256-M40----- 40 meter length

(Available in lengths from 1 meter to 40 meters, in 1-meter increments.)

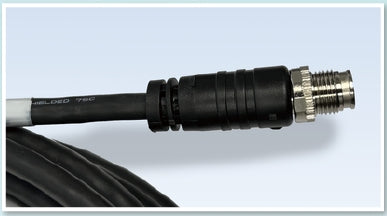

The above model ESM-1256M and its length code represent an M12 (X-coded) Male-to-Male double-ended type.

For combinations with female connectors, please contact us.
