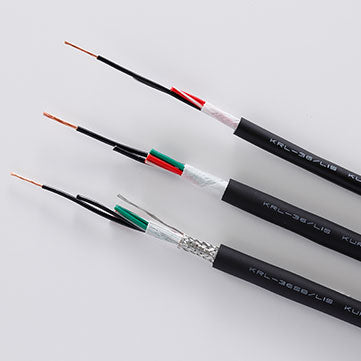

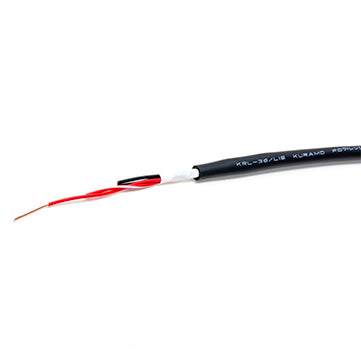

KRL-36/LIS (1coil/100m≒328ft)

Product Description

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Made to order should be confirm with us.

1. Scope

KRL-36/LIS is fixed cable which has heat resistant polyvinyl chloride insulation and oil and heat resistant polyvinyl chloride sheath, which applies to UL 758(AWM), UL 13(CL3), UL 444(CMG), CSA C22.2.No.210(AWM), CSA C22.2 No.214(CMG) and intended for use in accordance with the Canadian Electrical Code in Canada and NFPA70,79 in United States.

2．Type and size

Type and size are indicated in Table 1

3．Adaptation standards

Adaptation standard are indicated in Table 2

4．Materials and Constructions

4.1 Conductors
The conductors shall be stranded wires composed of annealed copper wires specified in JIS C 3102 and ASTM B3.

4.2 Insulation
The conductor described in 4.1 shall be covered with heat resistant polyvinyl chloride of the nominal thickness indicated in table 5 in the shape of a concentric circle.

4.3 Identification of insulated wire
The identification of insulated wires shall be made by the insulation colors and straight line indicated in table 3.

4.4 Twisted pair
The insulated wires indicated in table 3 shall be twisted.
The direction of lay of twist is right-hand.

4.5 Assembly
The twisted pairs described in 4.4 shall be arranged such as indicated in figure 1, and rolled up with tape on the assembly if number of cores is 4 or above.

4.6 Sheath
The assembly described in 4.5 shall be covered with oil and heat resistant polyvinyl chloride, the color is black, of the nominal thickness indicated in table 5 in the shape of a concentric circle.

4.7 Flame resistance
Flame resistance is indicated in table 4.

 Figure
