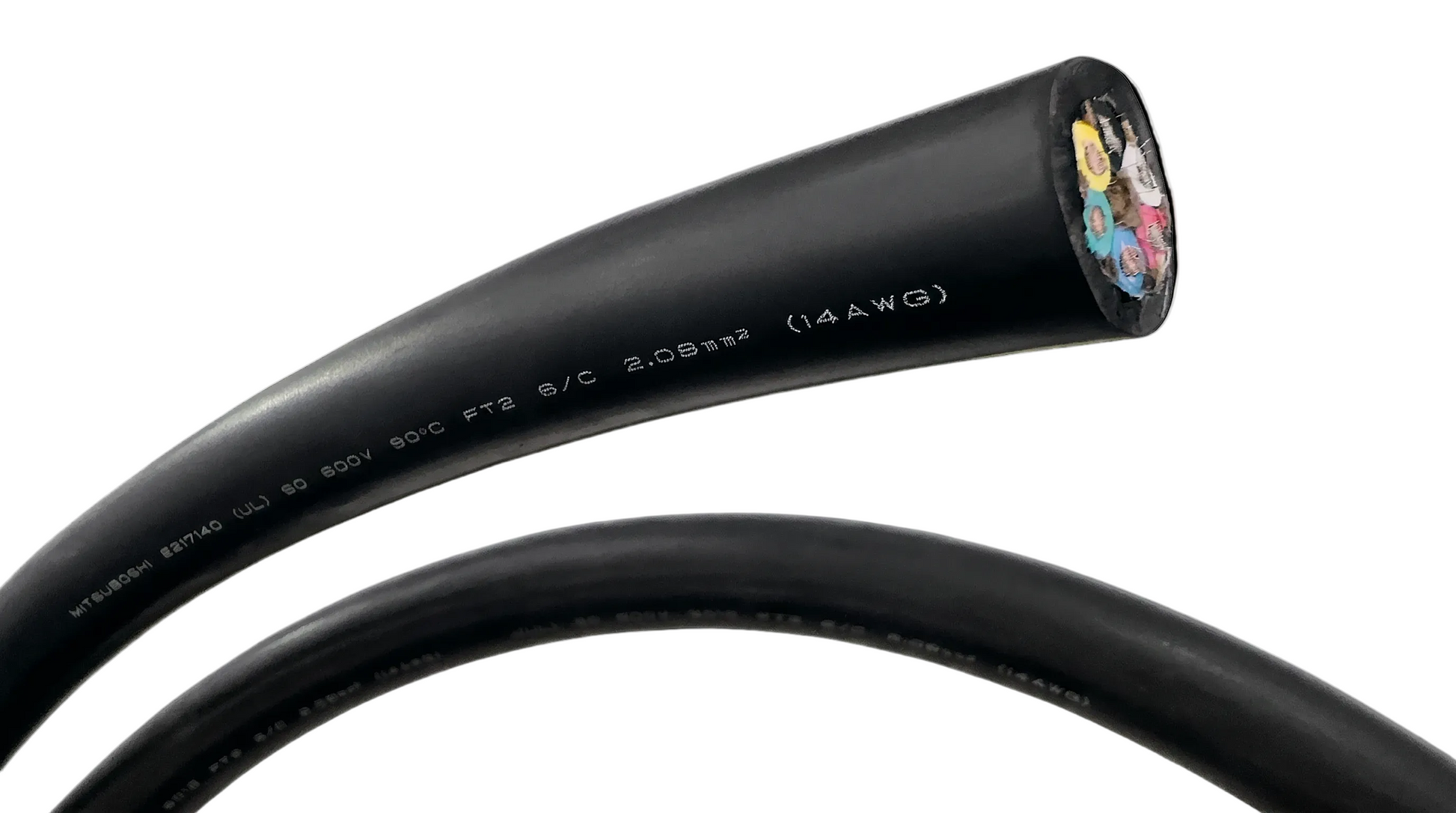

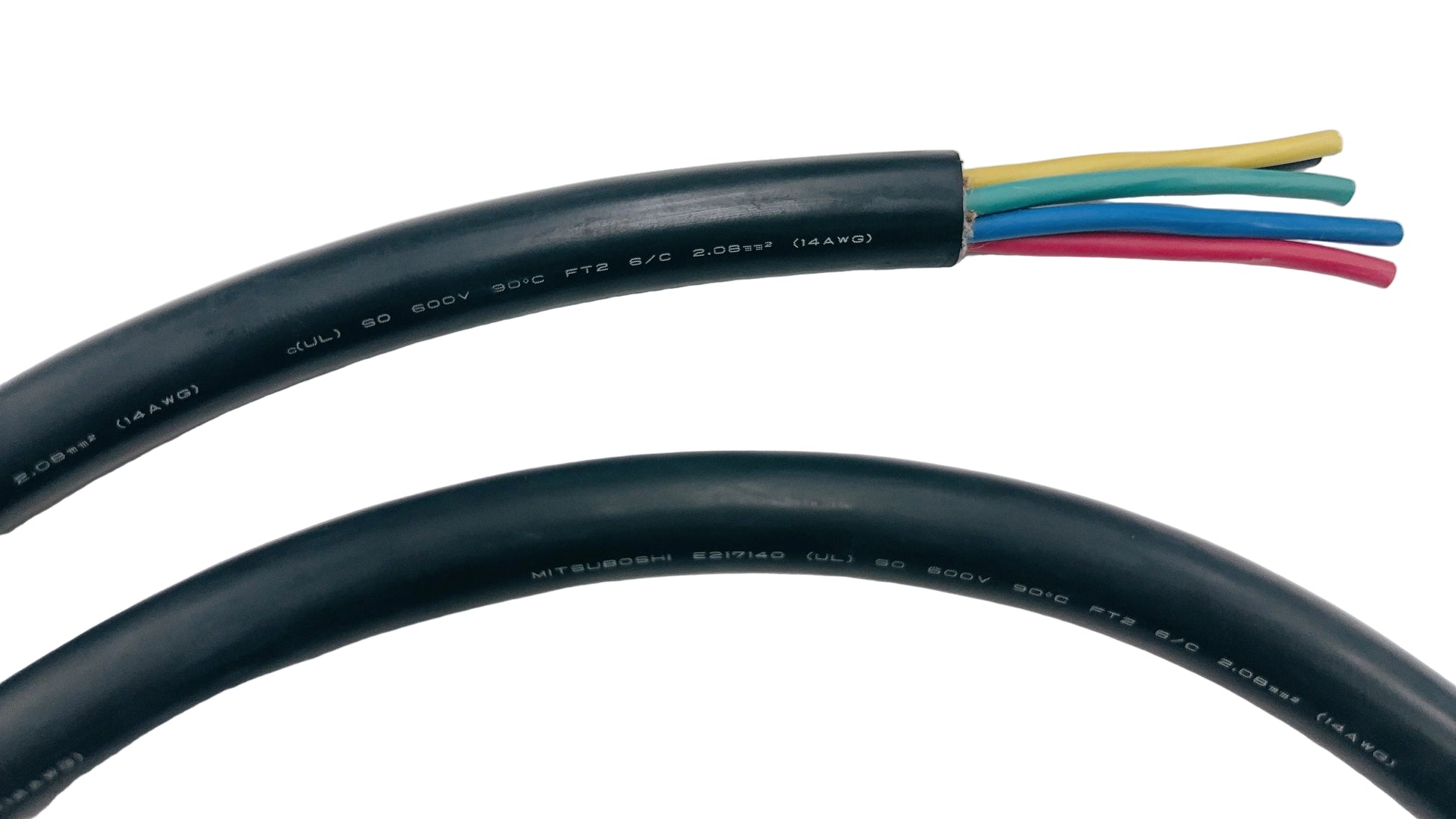

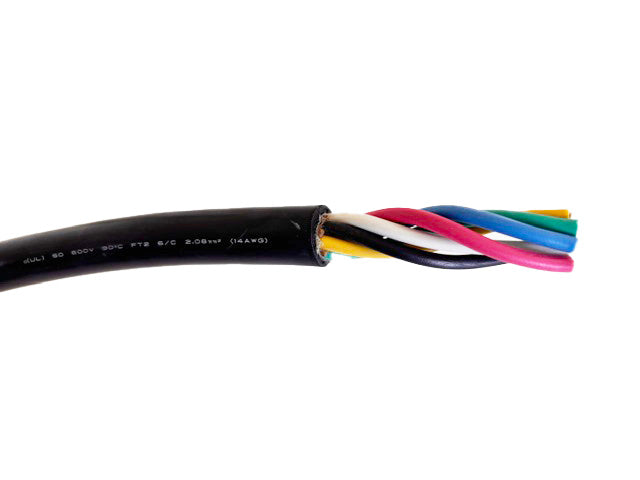

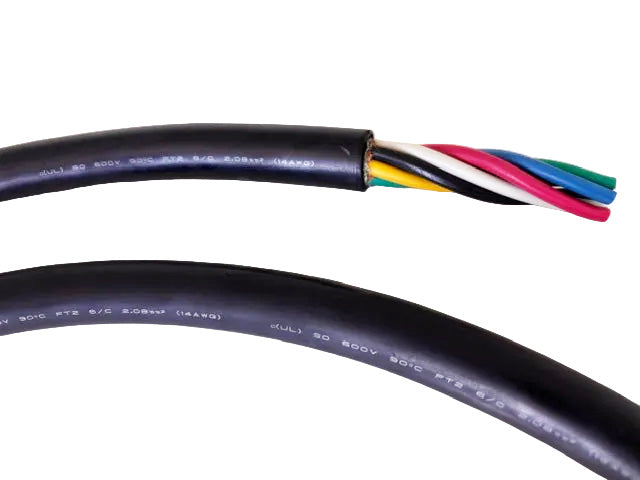

SO（600V Heat and Oil resistant rubber flexible cord )

Available
Login to View Price



For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Make to order should be confirm with us.

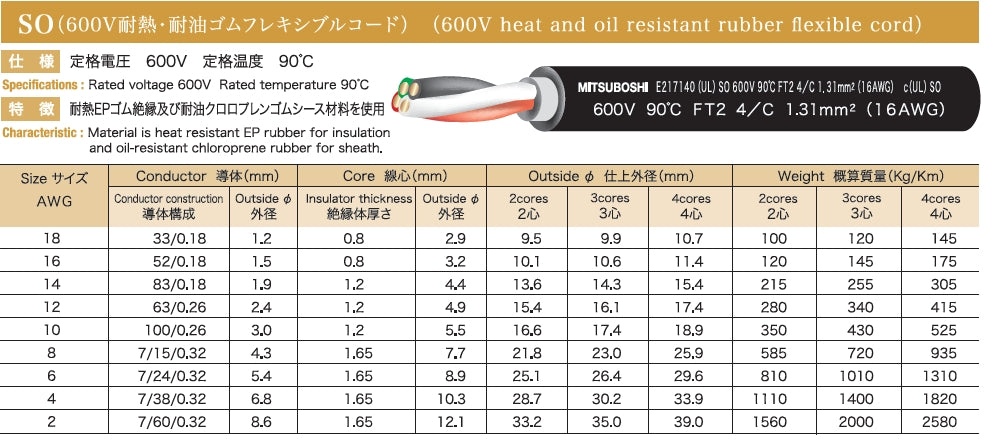

SO（600V Heat and Oil resistant rubber flexible cord )

Specifications: Rated voltage 600V, Rated temperature 90℃

Characteristic: Material is heat resistant EP rubber for insulation and oil-resistant chloroprene rubber for sheath.

Standard line identification

(1) Single Core: Black  , 2 cores: Black, white , 3 cores: Black, white , red or green.

4 cores: Black, white , red ,green.

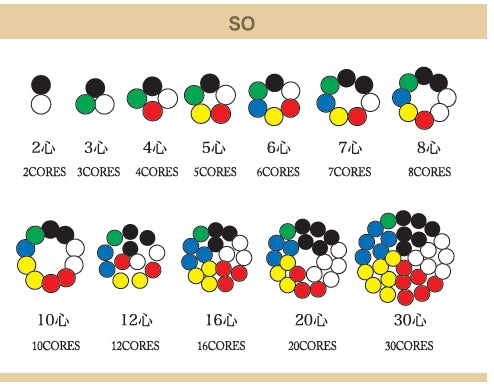

(2) Refer to the figure below for SO core identification.

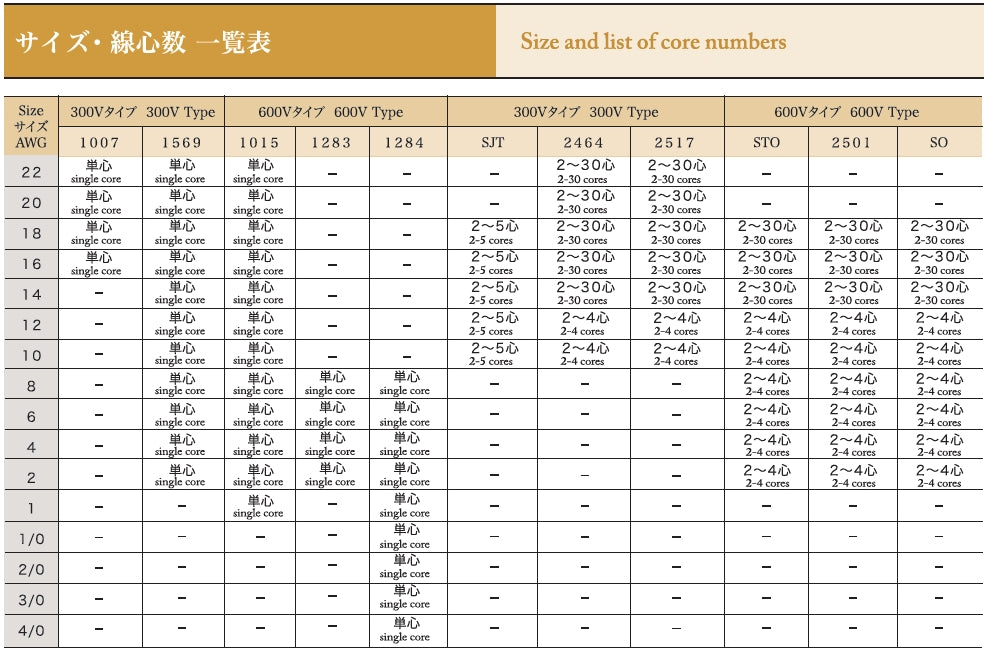

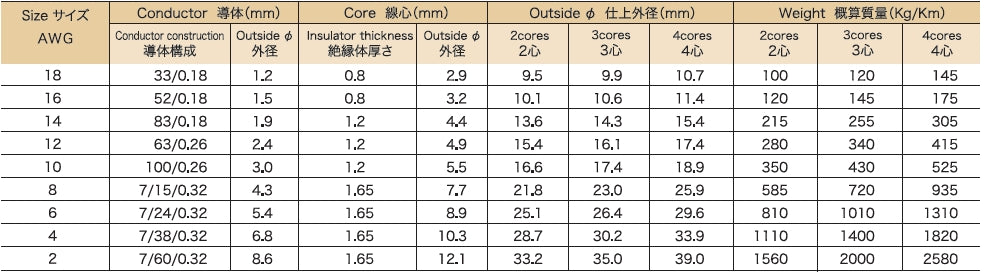

SIZE(AWG) 600V  Type SO
18 2-30 cores
16 2-30 cores
14 2-30 cores
12 2-4 cores
10 2-4 cores
 8 2-4 cores
 6 2-4 cores
 4 2-4 cores
 2 2-4 cores

-----------------------------------------------------------------------------------------

(1) Upon request, we can manufacture products other than the above standard identification. EX: The color of the core Green to Yellow / Green, etc. )

(2) If bending resistance is required, we will design it separately.



  • Manufacturer:
    Mitsuboshi
Download Contact Us
Product Description



For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Make to order should be confirm with us.

SO（600V Heat and Oil resistant rubber flexible cord )

Specifications: Rated voltage 600V, Rated temperature 90℃

Characteristic: Material is heat resistant EP rubber for insulation and oil-resistant chloroprene rubber for sheath.

Standard line identification

(1) Single Core: Black  , 2 cores: Black, white , 3 cores: Black, white , red or green.

4 cores: Black, white , red ,green.

(2) Refer to the figure below for SO core identification.

SIZE(AWG) 600V  Type SO
18 2-30 cores
16 2-30 cores
14 2-30 cores
12 2-4 cores
10 2-4 cores
 8 2-4 cores
 6 2-4 cores
 4 2-4 cores
 2 2-4 cores

-----------------------------------------------------------------------------------------

(1) Upon request, we can manufacture products other than the above standard identification. EX: The color of the core Green to Yellow / Green, etc. )

(2) If bending resistance is required, we will design it separately.
