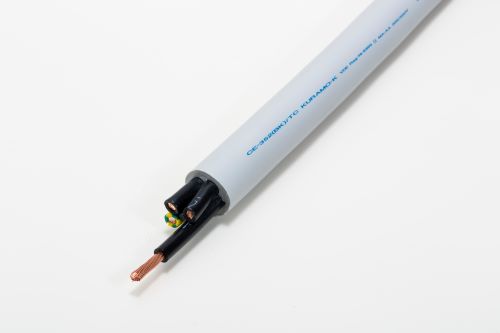

CE-352(BK)/TC(TC-ER) (1coil/100m≒328ft)

Available
Login to View Price

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Made to order should be confirm with us.


1. Scope

The specification is applied to 600V grade heat resistant polyvinyl chloride insulated and oil and heat resistant polyvinyl chloride sheathed portable power cables.

2.Type, Conductor size and Adaptation standard

Type, Conductor size and Adaptation standard are described in Table 1.

CE-352(BK)-TC_table

3. Materials , Construction

3.1  Conductor
The conductor shall be stranded wires composed of annealed copper wires specified in JIS C 3102.

3.2 Insulation
The conductor shall be covered with heat resistant polyvinyl chloride, of the nominal thickness shown in Table 2 , as in the shape of a concentric circle.
Average thickness of the insulation shall be not less than 90% of the value shown in Table 2 and minimum thickness at any point shall be not less than 80% of the value shown in Table2.

3.3 Identification of cores
Insulation color is black , and Arabic numerals which indicate conductor number are printed on the surface of insulation by white ink.

G/Y:Yellow stripes on the green insulation.
(by the circumference, the covered ratio of Green and Yellow is 60 to 40)
CE-352(BE)-TSL_numbering
3.4 Assembly of cores
The requisite number of cores shall be assembled to S lay (Left hand) with filler and rolled up with tape if necessary.(Figure 1)

3.5 Sheath
The assembled cores shall be covered with oil and heat resistant polyvinyl chloride, of the nominal thickness shown in Table 2 , as in the shape of a concentric.
Average thickness of the sheath shall be not less than 90% of the value shown in Table 2 and minimum thickness at any point shall be not less than 80% of the value shown in Table 2.
The color of sheath is light gray.

Attache Table 2

CE-352(BK)-TC_Attached table

CE-352(BK)-TC_Attached table
CE-352(BK)-TC_Attached table
 CE-352(BK)-TC_Attached table
CE-352(BK)-TC_Attached table

Construction

CE-352(BK)-TC_Figure


CE-352(BK)-TC_Figure

  • Certification:
    CE-352(BK)/TC(TC-ER)    (1coil/100m≒328ft) CE-352(BK)/TC(TC-ER)    (1coil/100m≒328ft) CE-352(BK)/TC(TC-ER)    (1coil/100m≒328ft) CE-352(BK)/TC(TC-ER)    (1coil/100m≒328ft) CE-352(BK)/TC(TC-ER)    (1coil/100m≒328ft) CE-352(BK)/TC(TC-ER)    (1coil/100m≒328ft)
  • Category:
    Global Cables
  • Manufacturer:
    Kuramo
  • Insulator:
    Heat resistant PVC
  • Heat Resistant
  • Oil Resistant
Nominal cross sectional area
