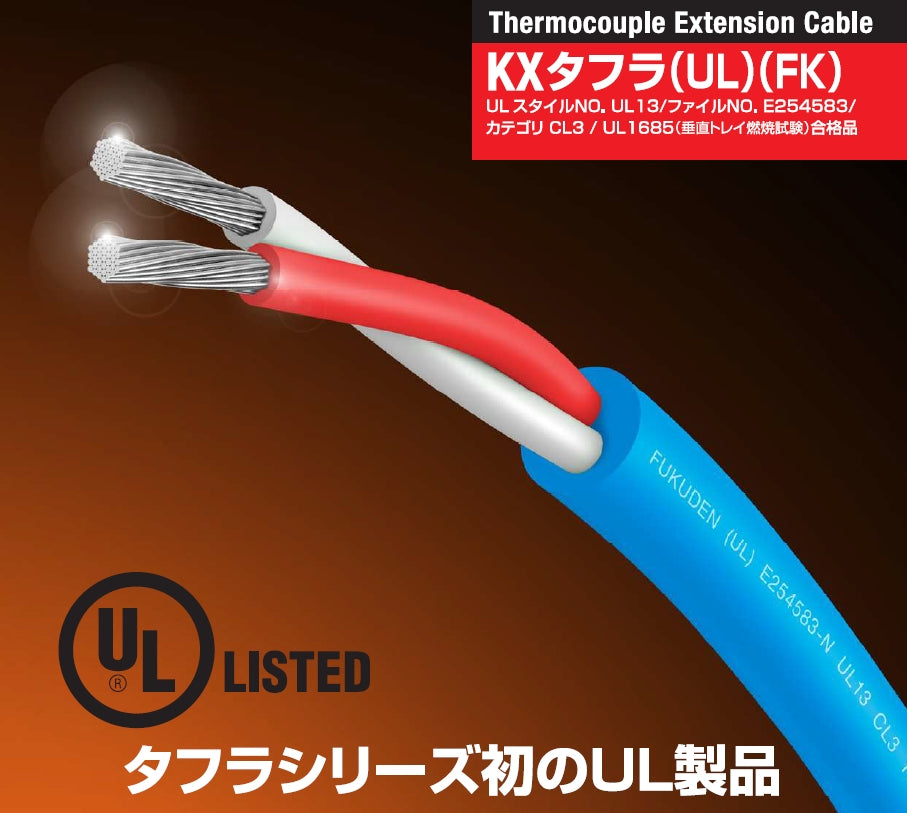

KX TAFRA (UL)(FK)
KX TAFRA (UL)(FK) – JIS-1995 Color Code 2 (Blue) This product is certified under the UL Listing, a mark primarily intended for final products. Unlike the UL Recognition Service, the Listing mark imposes no additional component-level restrictions, making it the most reliable certification for equipment designers.

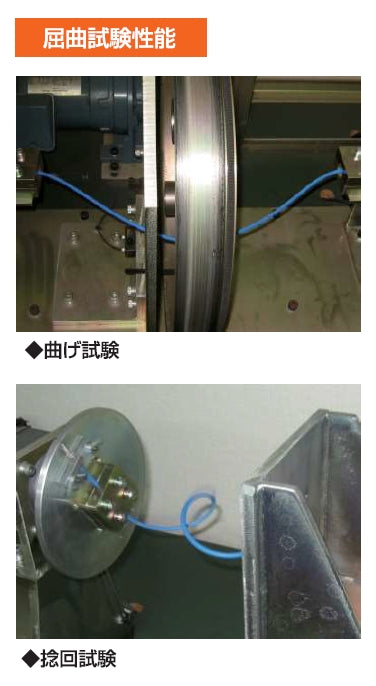

By combining ultra-fine stranded conductors with FEP/FR insulation, the KX TAFRA series delivers exceptional flexibility and durability, achieving a flexible, vibration‑resistant thermocouple extension cable. It offers a heat resistance of up to 200°C and is fully compliant with RoHS2 directives.

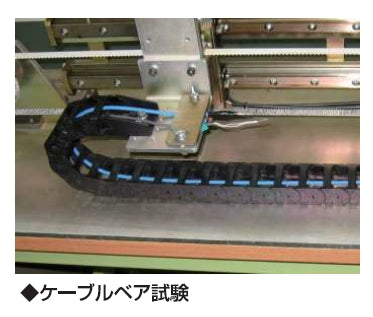

The KX TAFRA series is highly recommended for wiring in moving parts of injection molding machines, industrial robots, and other dynamic applications. With excellent heat resistance, flame retardancy, and chemical resistance, it is suitable for a wide range of industrial environments.
Specification Table

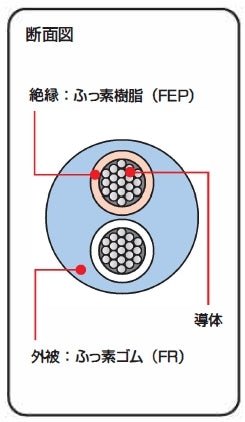

| Item | Specification |
|---|---|
| Product Name | KX TAFRA (UL)(FK) |
| Thermocouple Type | Type K |
| Conductor Material | (+) Chromel / (–) Alumel |
| Nominal Conductor Cross‑Section | 0.2 mm² |
| Conductor Construction | 30 / 0.10 mm |
| Conductor Diameter | 0.63 mm |
| Insulation Material | Fluororesin (FEP) |
| Insulation Thickness | 0.30 mm |
| Insulated Wire Diameter | 1.23 mm |
| Sheath Material | Fluoro‑Rubber (FR) |
| Sheath Thickness | 0.80 mm |
| Overall Finished Diameter (approx.) | 4.1 mm |
| Heat Resistance | 200°C |
| Withstand Voltage | AC 1500 V / 1 min |
| Insulation Resistance | ≥ 1500 MΩ·km |
| Approx. Mass | 29 kg/km |
Flexible, Heat‑Resistant, and Vibration‑Resistant Thermocouple Extension Wire KX TAFRA Series – Fluororesin Insulation / Fluoro‑Rubber Jacket (Round Type) KX TAFRA (UL)(FK) 〈JIS‑1995 Color Code 2: Blue〉
Features This product is certified with the UL Listing Service mark. Unlike the Recognition Service, which imposes certain limitations under applicable UL standards, the Listing mark is intended for final products and carries no such restrictions. It provides equipment designers with the highest level of confidence and reliability. The product is classified under the UL Green Book category.
By combining ultra‑fine conductors with FEP‑FR insulation, the KX TAFRA Series delivers exceptional flexibility, achieving a highly flexible and vibration‑resistant thermocouple extension wire. Heat Resistance: 200°C / RoHS2 Compliant
The KX TAFRA Series is ideal for wiring in moving components of equipment such as injection molding machines and industrial robots. Its excellent heat resistance, flame retardancy, and chemical resistance make it suitable for a wide range of industrial applications.
-
Manufacturer:FUKUDEN
Product Description
KX TAFRA (UL)(FK) – JIS-1995 Color Code 2 (Blue) This product is certified under the UL Listing, a mark primarily intended for final products. Unlike the UL Recognition Service, the Listing mark imposes no additional component-level restrictions, making it the most reliable certification for equipment designers.
By combining ultra-fine stranded conductors with FEP/FR insulation, the KX TAFRA series delivers exceptional flexibility and durability, achieving a flexible, vibration‑resistant thermocouple extension cable. It offers a heat resistance of up to 200°C and is fully compliant with RoHS2 directives.
The KX TAFRA series is highly recommended for wiring in moving parts of injection molding machines, industrial robots, and other dynamic applications. With excellent heat resistance, flame retardancy, and chemical resistance, it is suitable for a wide range of industrial environments.
Specification Table
| Item | Specification |
|---|---|
| Product Name | KX TAFRA (UL)(FK) |
| Thermocouple Type | Type K |
| Conductor Material | (+) Chromel / (–) Alumel |
| Nominal Conductor Cross‑Section | 0.2 mm² |
| Conductor Construction | 30 / 0.10 mm |
| Conductor Diameter | 0.63 mm |
| Insulation Material | Fluororesin (FEP) |
| Insulation Thickness | 0.30 mm |
| Insulated Wire Diameter | 1.23 mm |
| Sheath Material | Fluoro‑Rubber (FR) |
| Sheath Thickness | 0.80 mm |
| Overall Finished Diameter (approx.) | 4.1 mm |
| Heat Resistance | 200°C |
| Withstand Voltage | AC 1500 V / 1 min |
| Insulation Resistance | ≥ 1500 MΩ·km |
| Approx. Mass | 29 kg/km |
Flexible, Heat‑Resistant, and Vibration‑Resistant Thermocouple Extension Wire KX TAFRA Series – Fluororesin Insulation / Fluoro‑Rubber Jacket (Round Type) KX TAFRA (UL)(FK) 〈JIS‑1995 Color Code 2: Blue〉
Features This product is certified with the UL Listing Service mark. Unlike the Recognition Service, which imposes certain limitations under applicable UL standards, the Listing mark is intended for final products and carries no such restrictions. It provides equipment designers with the highest level of confidence and reliability. The product is classified under the UL Green Book category.
By combining ultra‑fine conductors with FEP‑FR insulation, the KX TAFRA Series delivers exceptional flexibility, achieving a highly flexible and vibration‑resistant thermocouple extension wire. Heat Resistance: 200°C / RoHS2 Compliant
The KX TAFRA Series is ideal for wiring in moving components of equipment such as injection molding machines and industrial robots. Its excellent heat resistance, flame retardancy, and chemical resistance make it suitable for a wide range of industrial applications.
