600V 2PNCT

Product Description

* (Not compliant with UL certification)

For Quotation, please click the Contact Us button below.

What's for Traveling Cable

①Temporary power supply for civil works
②Industrial machines (e.g. Hoist, Lifting magnet)
③Harbor facilities (e.g. Gantry Crane)
④Civil machines (e.g. Tunneling Machine)
⑤Submersible pump, Drainage facilities

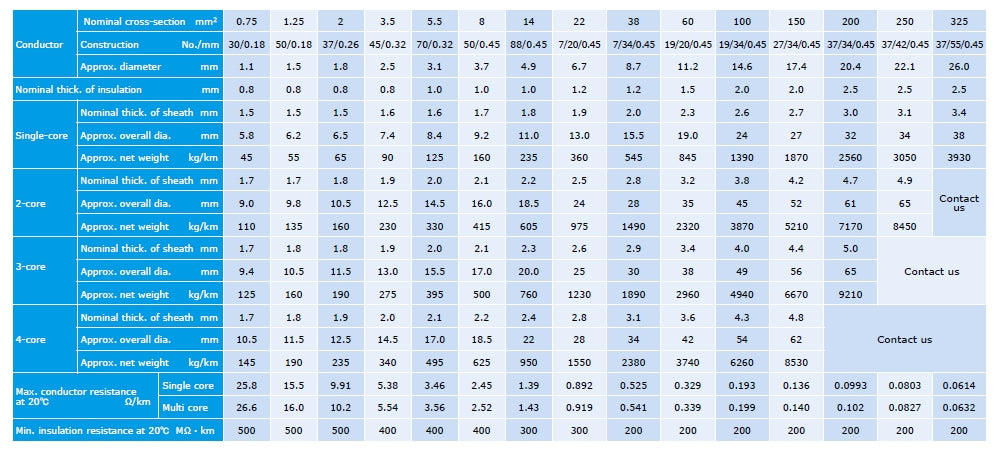

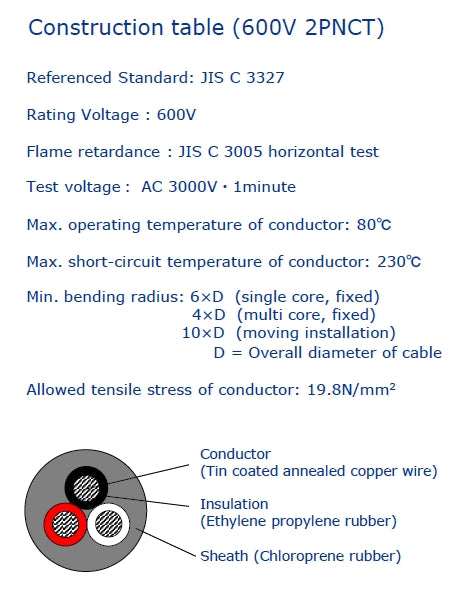

Construction table (600V 2PNCT)

Referenced Standard: JIS C 3327
Rating Voltage : 600V
Flame retardance : JIS C 3005 horizontal test

Test voltage： AC 3000V・1minute Max.

Operating temperature of conductor: 80℃ Max.

Short-circuit temperature of conductor: 230℃ Min.

Bending radius: 6×D (single core, fixed)

                          4×D (multi core, fixed)

                        10×D  (moving installation)

D = Overall diameter of cable
Allowed tensile stress of conductor: 19.8N/mm2

Certification: PSE, JIS C 3227

* (Not compliant with UL certification)
