UE/SSX83 LF

Product Description

For Quotation, please click the Contact Us button below.

Standard sales length: 100m (1coil/100m≒328ft)

Cutting under 100m or Made to order should be confirmed with us.

Application

• Electric wire for wiring in power supply.※
  ※It is not possible to use it as an electric wire for the power supply on the CSA standard.
• Appropriate for wiring in a narrow place is excellent in flexibility.
• It is possible to use it for wiring medium or low-speed operational components of machine tool.
• Cable Bear test 10 million times or more.

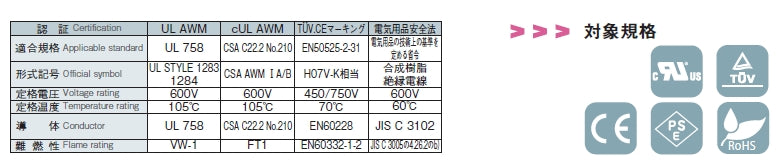

• Electrical insulated wire for internal Wiring equipment with UL and cUL at 600V, 105°C. (Category : AVLV2, AVLV8)
• CE marking.(TÜV recognition goods) (Certificate of TÜV No.J9950730)

Feature

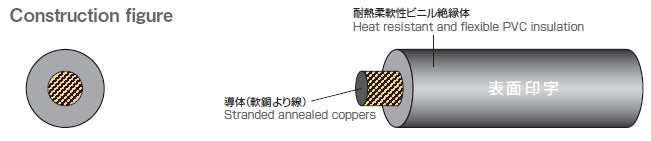

• Fine wire conductor use.
• Super flexible heat resistant PVC used for insulation.
• Flame resisting : UL VW-1, cUL FT1.

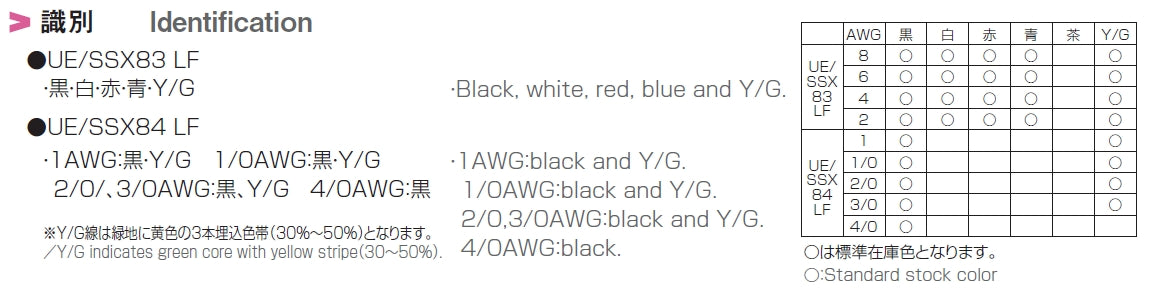

Identification

• • Black, white, red, blue and Y/G. (yellow/green striped)
  • 1AWG : Black and Y/G  (yellow/green striped)
  • 1/0 AWG : Black and Y/G (yellow/green striped)
  • 2/0 , 3/0 AWG :  Black and Y/G (yellow/green striped)
  • 4/0 AWG: Black
