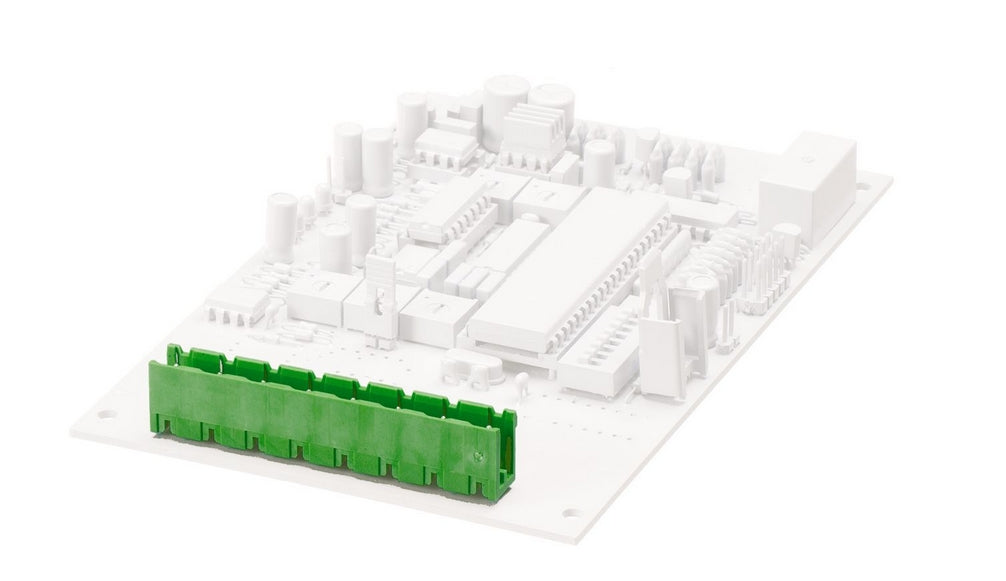

Name: STL 960 7.62mm H-G-GN Connector Series
Brand: Conta clip
Availability: InStock

Product Description
PDF Catalog
Reviews
Recommended Products

Product Description

For Quotation, please click the Contact Us button below.

Connector version: Attached plug-in connector
Packaging unit: 50
Quantity unit: PC
Packaging type: Carton
Type of banding: Without
Unit of weight: G
Country of origin: TN

UL Recognized

UL approval: UL 1059
UL Usegroup B: rated voltage: 300 V
UL Usegroup B: rated current: 15 A
UL Usegroup C: rated voltage: 150 V
UL Usegroup C: rated current: 15 A
UL Usegroup D: rated voltage: 300 V
UL Usegroup D: rated current: 10 A
UL wire material: Cu

Materials
Insulation housing: Polyamide 6.6 Color: Green
Flammability class UL 94: V-0
Working temperature, min.: -30 °C
Working temperature, max.: 105 °C
Contact pin: Copper alloy

Further technical data
Storage temperature, min.: -40 °C
Storage temperature, max.: 105 °C
Insulation resistance: 1*10^13 Ohm x cm
Creepage-current resistance: CTI 600
Glow wire flammability index GWFI: GWFI 850
GWFI after-glow time: 30 Second.
Glow wire ignition temperature GWIT: GWIT 775 °C
GWIT exposure time: 5 Second.
Plug-in cycles acc. to standard: 100
Recommended wave soldering temperature: 265 °C
Recommended wave soldering duration, min.: 3 Second.
Recommended wave soldering duration, max.: 4 Second.

Environmental Product Compliance
REACH Candidate Substance Note: 　No

Item name	Length x Width x Height (mm)	Product number	SPQ (packing unit)
STL 960/2/7,62-H-G GN	12mmx13.42mmx8.4mm	11744.1	50
STL 960/3/7,62-H-G GN	12mmx21.04mmx8.4mm	11745.1	50
STL 960/4/7,62-H-G GN	12mmx28.66mmx8.4mm	11746.1	50
STL 960/5/7,62-H-G GN	12mmx36.28mmx8.4mm	11747.1	50
STL 960/6/7,62-H-G GN	12mmx43.9mmx8.4mm	11748.1	50
STL 960/7/7,62-H-G GN	12mmx51.52mmx8.4mm	11749.1	50
STL 960/8/7,62-H-G GN	12mmx59.14mmx8.4mm	11750.1	50
STL 960/9/7,62-H-G GN	12mmx66.76mmx8.4mm	11751.1	50
STL 960/10/7,62-H-G GN	12mmx74.38mmx8.4mm	11752.1	50
STL 960/11/7,62-H-G GN	12mmx82mmx8.4mm	11753.1	50
STL 960/12/7,62-H-G GN	12mmx89.62mmx8.4mm	11754.1	50
STL 960/13/7,62-H-G GN	12mmx97.24mmx8.4mm	11755.1	50
STL 960/14/7,62-H-G GN	12mmx104.86mmx8.4mm	11756.1	50
STL 960/15/7,62-H-G GN	12mmx112.48mmx8.4mm	11757.1	50
STL 960/16/7,62-H-G GN	12mmx120.1mmx8.4mm	11758.1	50
