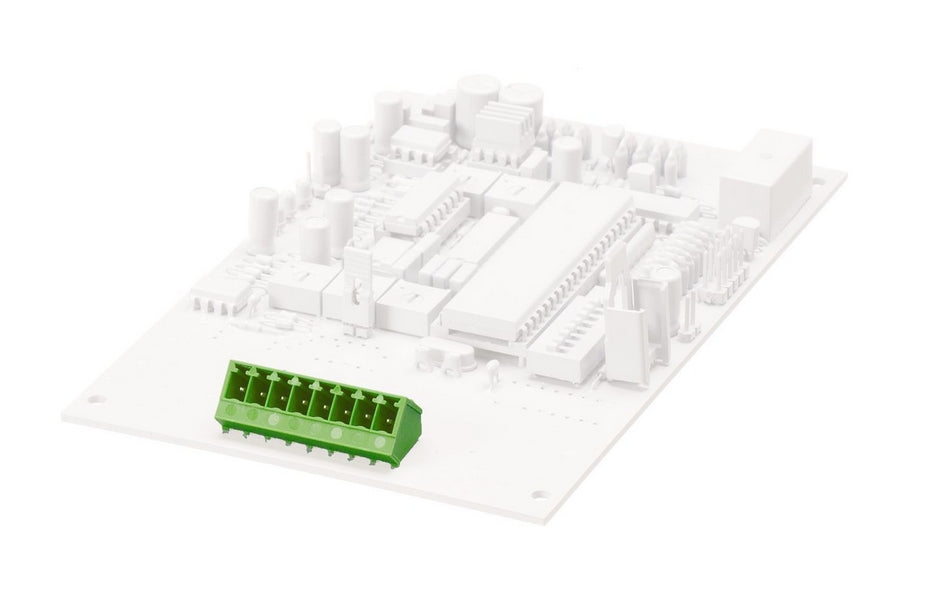

STL 1590-（3.81ｍｍ）-G GN Connector Series
For Quotation, please click the Contact Us button below.
Connector version: Attached plug-in connector
Packaging unit: 50
Quantity unit: PC
Packaging type: Carton
Type of banding: Without
Unit of weight: G
Country of origin: TN
Color: Green
Materials
Insulation housing: Polybutylene terephthalate
Flammability class UL 94: V-0
Working temperature, min.: -30 °C
Working temperature, max.: 105 °C
Contact pin: Copper alloy
Further technical data
Storage temperature, min.: -40 °C
Storage temperature, max.: 105 °C
Insulation resistance: 1*10^13 Ohm x cm
Creepage-current resistance: CTI 175
Glow wire flammability index GWFI: GWFI 850
GWFI after-glow time: 30 Second.
Glow wire ignition temperature GWIT: GWIT 775 °C
GWIT exposure time: 5 Second.
Plug-in cycles acc. to standard: 100
Recommended wave soldering temperature: 265 °C
Recommended wave soldering duration, min.: 3 Second.
Recommended wave soldering duration, max.: 4 Second.
Environmental Product Compliance
REACH Conform: yes
REACH Reference date: 2023-06-14
REACH Candidate Substance Note: No
RoHS Conform: yes

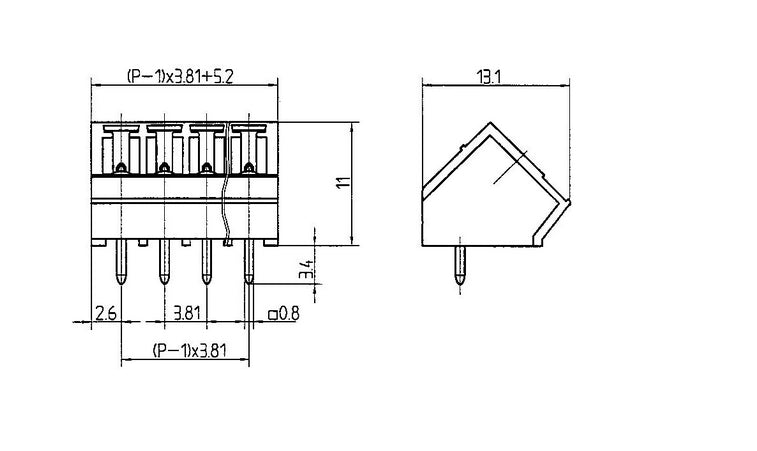

| Item name | Length x Width x Height (mm) | Product number | SPQ (packing unit) |
|
STL 1590/4/3,81-G GN |
13.1mmx16.63mmx11mm |
11985.1 |
50 |
|
STL 1590/5/3,81-G GN |
13.1mmx20.44mmx11mm | 11986.1 |
50 |
|
STL 1590/6/3,81-G GN |
13.1mmx24.25mmx11mm | 11987.1 | 50 |
|
STL 1590/7/3,81-G GN |
13.1mmx26.06mmx11mm | 11988.1 | 50 |
|
STL 1590/8/3,81-G GN |
13.1mmx31.87mmx11mm |
11989.1 |
50 |
|
STL 1590/9/3,81-G GN |
13.1mmx35.68mmx11mm |
11990.1 |
50 |
|
STL 1590/10/3,81-G GN |
13.1mmx39.49mmx11mm |
11991.1 |
50 |
Datasheet
Datasheet download STL 1590/4/3,81-G GN (11985.1)
Datasheet download STL 1590/5/3,81-G GN (11986.1)
Datasheet download STL 1590/6/3,81-G GN (11987.1)
Datasheet download STL 1590/7/3,81-G GN(11988.1)
Datasheet download STL 1590/8/3,81-G GN (11989.1)
Datasheet download STL 1590/9/3.81-G GN (11990.1)
Datasheet download STL 1590/10/3.81-G GN (11991.1)
-
Manufacturer:Conta clip
