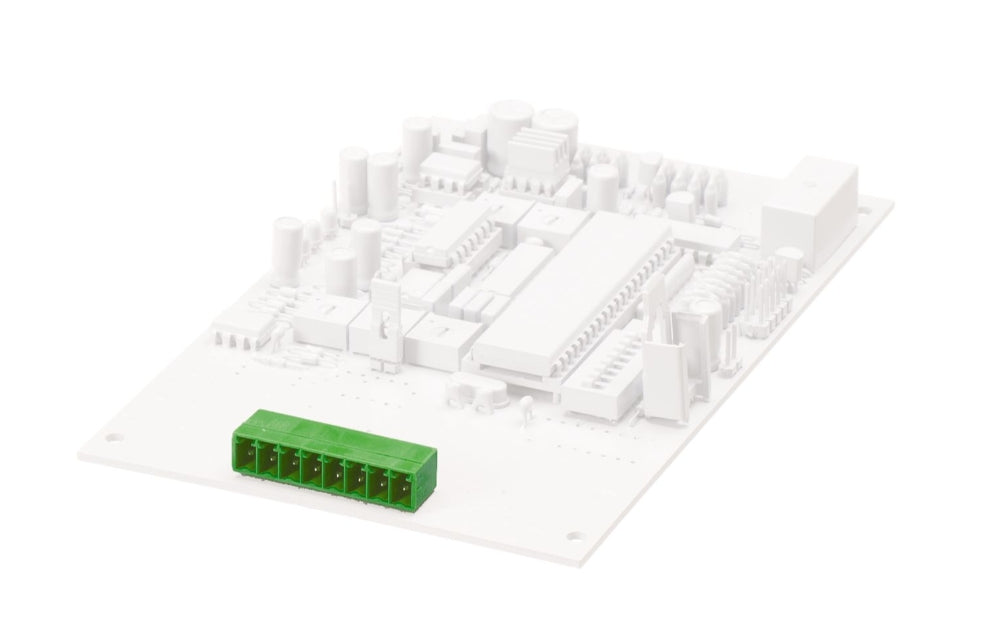

STL 1550-（3.81ｍｍ)-H-G GN Connector Series
For Quotation, please click the Contact Us button below.
Connector version: Attached plug-in connector
Packaging unit: 50
Quantity unit: PC
Packaging type: Carton
Type of banding: Without
Unit of weight: G
Country of origin: TN
Color: Green
Materials
Insulation housing: Polybutylene terephthalate
Flammability class UL 94: V-0
Working temperature, min.: -30 °C
Working temperature, max.: 105 °C
Contact pin: Copper alloy
Further technical data
Storage temperature, min.: -40 °C
Storage temperature, max.: 105 °C
Insulation resistance: 1*10^13 Ohm x cm
Creepage-current resistance: CTI 175
Glow wire flammability index GWFI: GWFI 850
GWFI after-glow time: 30 Second.
Glow wire ignition temperature GWIT: GWIT 775 °C
GWIT exposure time: 5 Second.
Plug-in cycles acc. to standard: 100
Recommended wave soldering temperature: 265 °C
Recommended wave soldering duration, min.: 3 Second.
Recommended wave soldering duration, max.: 4 Second.
Environmental Product Compliance
REACH Conform: yes
REACH Reference date: 2023-06-14
REACH Candidate Substance Note: No
RoHS Conform: yes

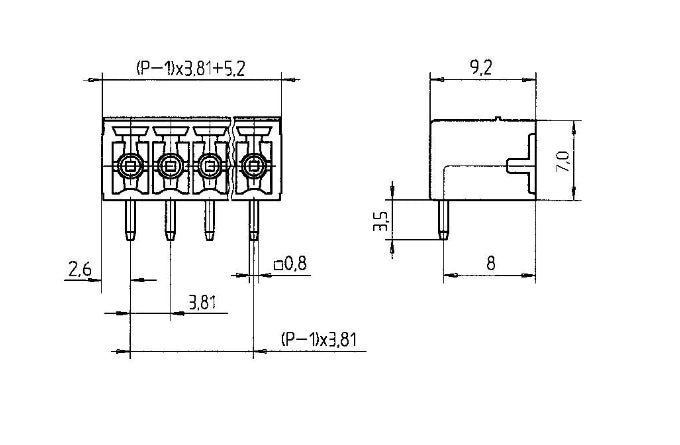

| Item name | Length x Width x Height (mm) | Product number | SPQ (packing unit) |
|
STL 1550/2/3.81-H-G GN |
9.2mmx9.01mmx7mm |
11930.1 |
50 |
|
STL 1550/3/3.81-H-G GN |
9.2mmx12.82mmx7mm | 11931.1 |
50 |
|
STL 1550/4/3.81-H-G GN |
9.2mmx16.63mmx7mm | 11932.1 | 50 |
|
STL 1550/5/3.81-H-G GN |
9.2mmx20.44mmx7mm | 11933.1 | 50 |
|
STL 1550/6/3.81-H-G GN |
9.2mmx24.25mmx7mm |
11934.1 |
50 |
|
STL 1550/7/3.81-H-G GN |
9.2mmx28.06mmx7mm |
11935.1 |
50 |
|
STL 1550/8/3.81-H-G GN |
9.2mmx31.87mmx7mm |
11936.1 |
50 |
Datasheet
Datasheet download STL 1550/2/3.81-H-G GN (11930.1)
Datasheet download STL 1550/3/3.81-H-G GN (11931.1)
Datasheet download STL 1550/4/3.81-H-G GN (11932.1)
Datasheet download STL 1550/5/3.81-H-G GN(11933.1)
Datasheet download STL 1550/6/3.81-H-G GN (11934.1)
Datasheet download STL 1550/7/3.81-H-G GN (11935.1)
Datasheet download STL 1550/8/3.81-H-G GN (11936.1)
-
Manufacturer:Conta clip
Product Description
For Quotation, please click the Contact Us button below.
Connector version: Attached plug-in connector
Packaging unit: 50
Quantity unit: PC
Packaging type: Carton
Type of banding: Without
Unit of weight: G
Country of origin: TN
Color: Green
Materials
Insulation housing: Polybutylene terephthalate
Flammability class UL 94: V-0
Working temperature, min.: -30 °C
Working temperature, max.: 105 °C
Contact pin: Copper alloy
Further technical data
Storage temperature, min.: -40 °C
Storage temperature, max.: 105 °C
Insulation resistance: 1*10^13 Ohm x cm
Creepage-current resistance: CTI 175
Glow wire flammability index GWFI: GWFI 850
GWFI after-glow time: 30 Second.
Glow wire ignition temperature GWIT: GWIT 775 °C
GWIT exposure time: 5 Second.
Plug-in cycles acc. to standard: 100
Recommended wave soldering temperature: 265 °C
Recommended wave soldering duration, min.: 3 Second.
Recommended wave soldering duration, max.: 4 Second.
Environmental Product Compliance
REACH Conform: yes
REACH Reference date: 2023-06-14
REACH Candidate Substance Note: No
RoHS Conform: yes
| Item name | Length x Width x Height (mm) | Product number | SPQ (packing unit) |
|
STL 1550/2/3.81-H-G GN |
9.2mmx9.01mmx7mm |
11930.1 |
50 |
|
STL 1550/3/3.81-H-G GN |
9.2mmx12.82mmx7mm | 11931.1 |
50 |
|
STL 1550/4/3.81-H-G GN |
9.2mmx16.63mmx7mm | 11932.1 | 50 |
|
STL 1550/5/3.81-H-G GN |
9.2mmx20.44mmx7mm | 11933.1 | 50 |
|
STL 1550/6/3.81-H-G GN |
9.2mmx24.25mmx7mm |
11934.1 |
50 |
|
STL 1550/7/3.81-H-G GN |
9.2mmx28.06mmx7mm |
11935.1 |
50 |
|
STL 1550/8/3.81-H-G GN |
9.2mmx31.87mmx7mm |
11936.1 |
50 |
Datasheet
Datasheet download STL 1550/2/3.81-H-G GN (11930.1)
Datasheet download STL 1550/3/3.81-H-G GN (11931.1)
Datasheet download STL 1550/4/3.81-H-G GN (11932.1)
Datasheet download STL 1550/5/3.81-H-G GN(11933.1)
Datasheet download STL 1550/6/3.81-H-G GN (11934.1)
Datasheet download STL 1550/7/3.81-H-G GN (11935.1)
Datasheet download STL 1550/8/3.81-H-G GN (11936.1)
