Product Description
For Quotation, please click the Contact Us button below.

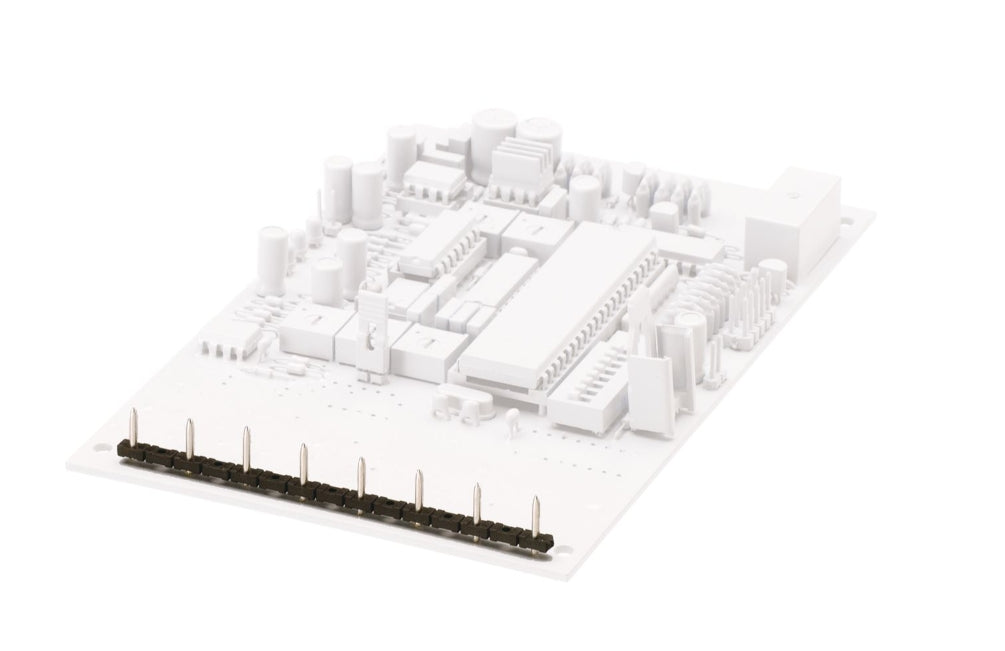

Connector version: Attached plug-in connector
Packaging unit: 50
Quantity unit: PC
Packaging type: Carton
Type of banding: Without
Unit of weight: G
Customs number: 85366930
Country of origin: TN
Color: Black
Materials
Insulation housing: Polyamide 6.6
Flammability class UL 94: V-0
Working temperature, min.: -30 °C
Working temperature, max.: 105 °C
Contact pin: Brass
Further technical data
Storage temperature, min.: -40 °C
Storage temperature, max.: 105 °C
Insulation resistance: 1*10^13 Ohm x cm
Creepage-current resistance: CTI 600
Glow wire flammability index GWFI: GWFI 850
GWFI after-glow time: 30 Second.
Glow wire ignition temperature GWIT: GWIT 775 °C
GWIT exposure time: 5 Second.
Plug-in cycles acc. to standard: 100
Recommended wave soldering temperature: 265 °C
Recommended wave soldering duration, min.: 3 Second.
Recommended wave soldering duration, max.: 4 Second.
Environmental Product Compliance
REACH Conform: yes
REACH Reference date: 2023-06-14
REACH Candidate Substance Note: No
RoHS Conform: yes
cUL Recognized
cUL approval: CSA 22.2 No.158
cUL Usegroup B: rated voltage: 300 V
cUL Usegroup B: rated current: 10 A
cUL Usegroup C: rated voltage: 150 V
cUL Usegroup C: rated current: 10 A
cUL Usegroup D: rated voltage: 300 V
cUL Usegroup D: rated current: 10 A
cUL wire material: Cu
cUL Recognized:
UL Recognized
UL approval: UL 1059
UL Usegroup B: rated voltage: 300 V
UL Usegroup B: rated current: 10 A
UL Usegroup C: rated voltage: 150 V
UL Usegroup C: rated current: 10 A
UL Usegroup D: rated voltage: 300 V
UL Usegroup D: rated current: 10 A
UL wire material: Cu
VDE approval
VDE approval: DIN EN 61984
VDE approval granted:
VDE rated voltage: 630 V
VDE rated current: 7 A
VDE rated impulse voltage: 6 kV
VDE overvoltage category: III
VDE contamination degree: 3

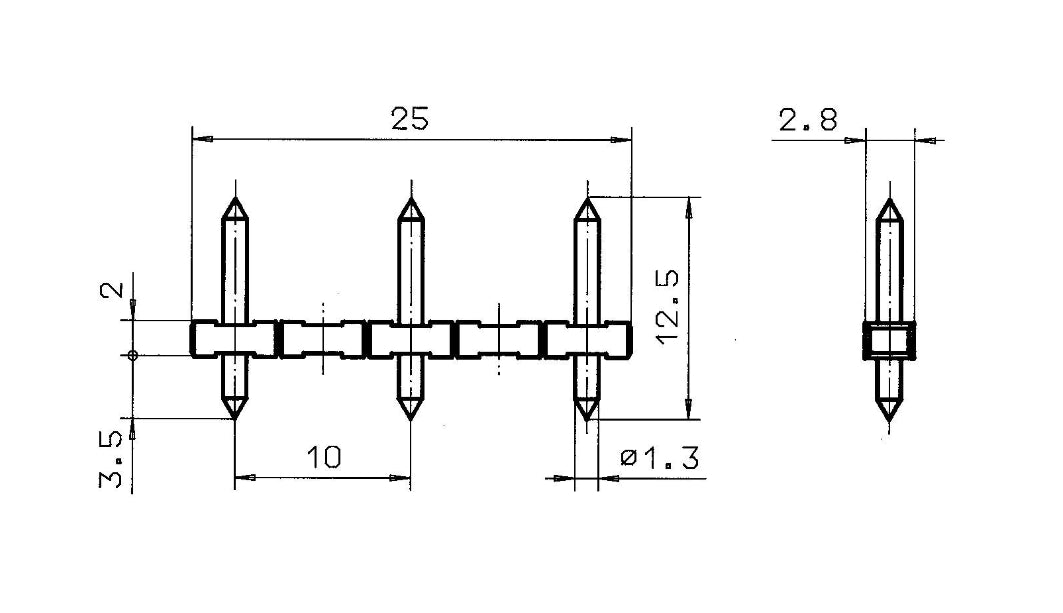

Item name | Length x Width x Height (mm) | Product number | SPQ (packing unit) |
STL 130/2/10.00-V BK |
2.8mmx15mmx9mm |
11458.4 |
50 |
STL 130/3/10.00-V BK |
2.8mmx25mmx9mm | 11459.4 |
50 |
STL 130/4/10,00-V BK |
2.8mmx35mmx9mm | 11460.4 | 50 |
STL 130/5/10.00-V BK |
2.8mmx45mmx9mm | 11461.4 | 50 |
STL 130/6/10.00-V BK |
2.8mmx55mmx9mm |
11462.4 |
50 |
STL 130/7/10.00-V BK |
2.8mmx65mmx9mm |
11463.4 |
50 |
STL 130/8/10.00-V BK |
2.8mmx75mmx9mm |
11464.4 |
50 |
Datasheet
Datasheet download STL 130/2/10.00-V BK (11458.4)
Datasheet download STL 130/3/10.00-V BK (11459.4)
Datasheet download STL 130/4/10.00-V BK (11460.4)
Datasheet download STL 130/5/10.00-V BK(11461.4)
Datasheet download STL 130/6/10.00-V BK (11462.4)
Datasheet download STL 130/7/10.00-V BK (11463.4)
Datasheet download STL 130/8/10.00-V BK (11464.4)
