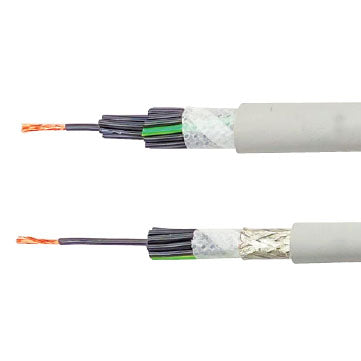

SCUT6-X (1coil/100m≒328ft)

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Make to order should be confirm with us.

1. Scope

This specification applies to cables using heat-resistant polyvinyl chloride for insulation and oil-resistant and heat-resistant polyvinyl chloride for sheath (SCUT6-X).

2. Type, conductor size

Type and conductor size are Table 1.

3. Adaptation standard

Adaptation standard is Table 2.

4. Materials, construction and manufacturing methods

4.1 Conductor
The conductor shall be a stranded wire composed of annealed copper wires specified in JIS C 3102 and IEC 60228 Class 5.

4.2 Insulation
The conductor shall be covered with heat-resistant polyvinyl chloride, as insulation, concentrically in thickness shown in Attached Table 3.

4.3 Identification of cores
Insulation is colored black and printed in Arabic numerals by white ink.

4.4 Assembly of cores
The requisite number of cores shall be assembled in S lay (left-hand stranding).
The fillers are inserted to the gap of the core, to make it a circular form, if it is necessary.
The cores are rolled up by the tape.

4.5 Sheath
Assembled cores shall be covered with oil and heat-resistant polyvinyl chloride (light gray), concentrically in thickness shown in Attached Table 3.

Attached Table

Construction
