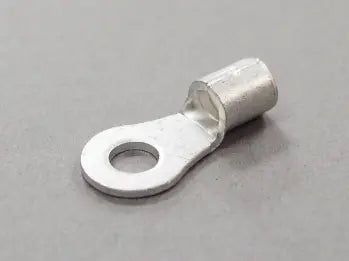

R5.5-4(Package Qty=100)
Available
Login to View Price
1Package（1Package=100）
Features
- MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
- RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
- STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
- Stud: #8
- AWG: 12-10
- B: 9.5mm / 0.37"
- L: 19.5mm / 0.77"
- F: 8.25mm / 0.32"
- E: 6.5mm / 0.26"
- øD: 5.6mm / 0.22"
- ød: 3.4mm / 0.13"
- ød2: 4.3mm / 0.17"
- Wire Size Range for Solid Wire (mm): 1.82-2.89
- Wire Size Range for Stranded Wire (mmø|): 2.63-6.64
- Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
- RoHS: RoHS 10
- Standards: UL, CSA, JIS
-
Manufacturer:NICHIFU
Product Description
1Package（1Package=100）
Features
- MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
- RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
- STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
- Stud: #8
- AWG: 12-10
- B: 9.5mm / 0.37"
- L: 19.5mm / 0.77"
- F: 8.25mm / 0.32"
- E: 6.5mm / 0.26"
- øD: 5.6mm / 0.22"
- ød: 3.4mm / 0.13"
- ød2: 4.3mm / 0.17"
- Wire Size Range for Solid Wire (mm): 1.82-2.89
- Wire Size Range for Stranded Wire (mmø|): 2.63-6.64
- Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
- RoHS: RoHS 10
- Standards: UL, CSA, JIS
