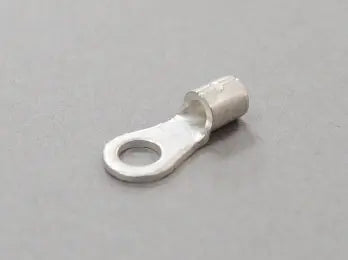

R2-3.5 (Package Qty=100)
Available
Login to View Price
1Package（1Package=100）
Features
- MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
- RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
- STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
- Stud: #6
- AWG: 16-14
- B: 6.6mm / 0.26"
- L: 14.4mm / 0.57"
- F: 6.6mm / 0.26"
- E: 4.5mm / 0.18"
- øD: 4.2mm / 0.17"
- ød: 2.3mm / 0.09"
- ød2: 3.7mm / 0.15"
- Wire Size Range for Solid Wire (mm): 1.14-1.82
- Wire Size Range for Stranded Wire (mmø|): 1.04-2.63
- Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
- RoHS: RoHS 10
- Standards: UL, CSA, JIS
-
Manufacturer:NICHIFU
Product Description
1Package（1Package=100）
Features
- MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
- RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
- STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
- Stud: #6
- AWG: 16-14
- B: 6.6mm / 0.26"
- L: 14.4mm / 0.57"
- F: 6.6mm / 0.26"
- E: 4.5mm / 0.18"
- øD: 4.2mm / 0.17"
- ød: 2.3mm / 0.09"
- ød2: 3.7mm / 0.15"
- Wire Size Range for Solid Wire (mm): 1.14-1.82
- Wire Size Range for Stranded Wire (mmø|): 1.04-2.63
- Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
- RoHS: RoHS 10
- Standards: UL, CSA, JIS
