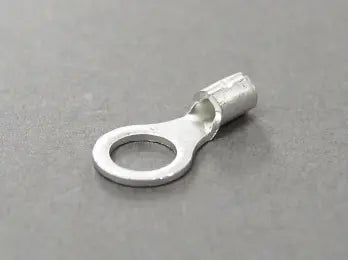

R1.25-5 (Package Qty=100)

Available
Login to View Price

1Package(1Package=100)

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: #10
  • AWG: 22-16
  • B: 8mm / 0.31"
  • L: 15.6mm / 0.61"
  • F: 7.1mm / 0.28"
  • E: 4.5mm / 0.18"
  • øD: 3.4mm / 0.13"
  • ød: 1.7mm / 0.07"
  • ød2: 5.3mm / 0.21"
  • Wire Size Range for Solid Wire (mm): 0.57-1.44
  • Wire Size Range for Stranded Wire (mmø|): 0.25-1.65
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA, JIS
        • Manufacturer:
          NICHIFU
        Product Description

        1Package(1Package=100)

        Features
        • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
        • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
        • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
        Specifications
        • Stud: #10
        • AWG: 22-16
        • B: 8mm / 0.31"
        • L: 15.6mm / 0.61"
        • F: 7.1mm / 0.28"
        • E: 4.5mm / 0.18"
        • øD: 3.4mm / 0.13"
        • ød: 1.7mm / 0.07"
        • ød2: 5.3mm / 0.21"
        • Wire Size Range for Solid Wire (mm): 0.57-1.44
        • Wire Size Range for Stranded Wire (mmø|): 0.25-1.65
        • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
        • RoHS: RoHS 10
        • Standards: UL, CSA, JIS
