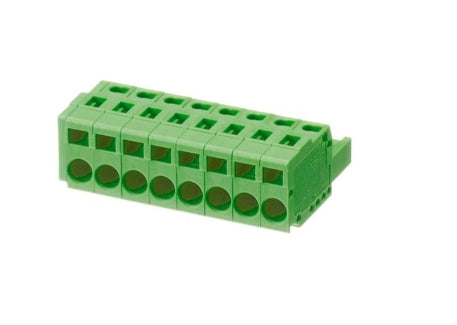

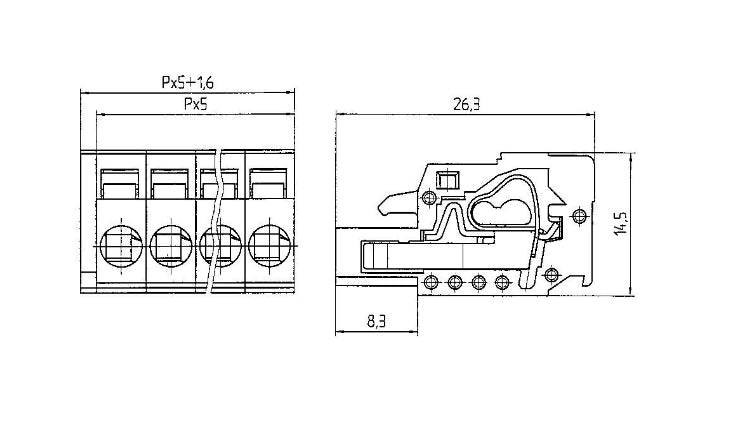

PZB 3950 GN Connector Series

Product Description

For Quotation, please click the Contact Us button below.

Connector version: Free connector
Packaging unit: 50
Quantity unit: PC
Packaging type: Carton
Type of banding: Without
Unit of weight: G
Customs number: 85366930
Country of origin: TN
Color: Green

Materials
Insulation housing: Polyamide 6.6
Flammability class UL 94: V-0
Working temperature, min.: -30 °C
Working temperature, max.: 105 °C
Contact spring: Copper alloy

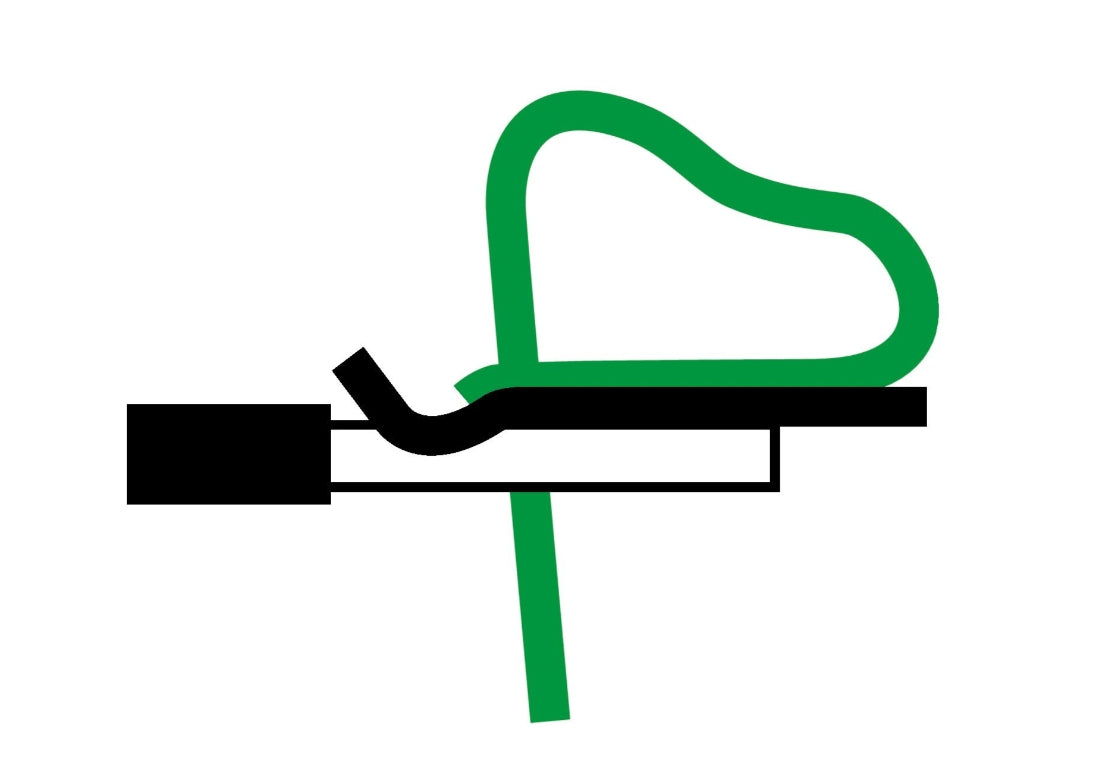

Tension spring: Stainless steel

Further technical data
Storage temperature, min.: -40 °C
Storage temperature, max.: 105 °C
Insulation resistance: 1*10^13 Ohm x cm
Creepage-current resistance: CTI 600
Glow wire flammability index GWFI: GWFI 850
GWFI after-glow time: 30 Second.
Glow wire ignition temperature GWIT: GWIT 775 °C
GWIT exposure time: 5 Second.
Connection cycles, in compliance with standard: 10
Plug-in cycles acc. to standard: 100

Environmental Product Compliance
REACH Conform: yes
REACH Reference date: 2023-06-14
REACH Candidate Substance Note: No
RoHS Conform: yes


UL Recognized
UL approval: UL 1059
UL Usegroup B: rated voltage: 300 V
UL Usegroup B: rated current: 15 A
UL Usegroup D: rated voltage: 300 V
UL Usegroup D: rated current: 10 A
UL wire cross-section single-core (rigid) AWG, min.: 28
UL wire cross-section single-core (rigid) AWG, max.: 12
UL wire cross-section stranded AWG, min.: 28
UL wire cross-section stranded AWG, max.: 12
UL wire material: Cu


VDE approval
VDE approval: DIN EN 61984
VDE approval granted:
VDE rated voltage: 4 V
VDE rated current: 12 A
VDE rated current wire cross-section rigid, min.: 5 A
VDE rated current wire cross-section rigid, max.: 12 A
VDE rated current wire cross-section stranded, min.: 5 A
VDE rated current wire cross-section stranded, max.: 12 A
VDE wire cross-section rigid, min.: 0.5 mm²
VDE wire cross-section rigid, max.: 2.5 mm²
VDE wire cross-section stranded, min.: 0.5 mm²
VDE wire cross-section stranded, max.: 2.5 mm²
VDE overvoltage category: III
VDE contamination degree: 3

Datasheet　

Datasheet download PZB 3950/8/5,00 GN (11418.1)

Datasheet download PZB 3950/9/5,00 GN (11419.1)

Datasheet download PZB 3950/10/5,00 GN (11420.1)

Datasheet download PZB 3950/11/5,00 GN (11421.1)

Datasheet download PZB 3950/12/5,00 GN (11422.1)
