PC4020-F-BCL (Package Qty=100)
Available
Login to View Price
1Package（1Package=100）

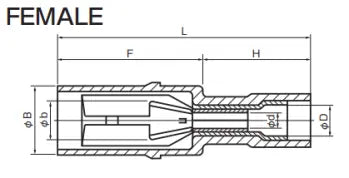

Specifications
- AWG: 14
- øb: 3.9mm / 0.15"
- øB: 6.9mm / 0.27"
- ød: 2.4mm / 0.09"
- øD: 3.9mm / 0.15"
- L: 26.2mm / 1.03"
- F: 15mm / 0.59"
- H: 11.2mm / 0.44"
- Wire Size Range for Stranded Wire: 2.0mm²
- Material (Terminal): Brass (electro-tin-plated)
- Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
- Material (Insulator): Nylon
- Rated Voltage: 300V
- Rated Current: 20A
- Insulator Temperature: -40°F to 221°F / -40°C to 105°C
- Flame Retardance: UL 94 V-2
- Standard Color: Blue
- Applicable Hand Tools: NH 12, NH 32
- Appicable Crimpint Machines: NA 10, NA 3
- Applicable Dies: N10 12, N3 12
- RoHS: RoHS 10
-
Manufacturer:NICHIFU
Product Description
1Package（1Package=100）
Specifications
- AWG: 14
- øb: 3.9mm / 0.15"
- øB: 6.9mm / 0.27"
- ød: 2.4mm / 0.09"
- øD: 3.9mm / 0.15"
- L: 26.2mm / 1.03"
- F: 15mm / 0.59"
- H: 11.2mm / 0.44"
- Wire Size Range for Stranded Wire: 2.0mm²
- Material (Terminal): Brass (electro-tin-plated)
- Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
- Material (Insulator): Nylon
- Rated Voltage: 300V
- Rated Current: 20A
- Insulator Temperature: -40°F to 221°F / -40°C to 105°C
- Flame Retardance: UL 94 V-2
- Standard Color: Blue
- Applicable Hand Tools: NH 12, NH 32
- Appicable Crimpint Machines: NA 10, NA 3
- Applicable Dies: N10 12, N3 12
- RoHS: RoHS 10
