PC4009-F-RCL (Package Qty=100)
Available
Login to View Price
1Package（1Package=100）
Specifications

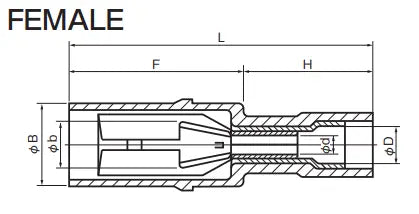

- AWG: 18-16
- øb: 3.9mm / 0.15"
- øB: 6.9mm / 0.27"
- ød: 1.8mm / 0.07"
- øD: 3.2mm / 0.13"
- L: 26.2mm / 1.03"
- F: 15mm / 0.59"
- H: 11.2mm / 0.44"
- Wire Size Range for Stranded Wire: 0.75-1.25mm²
- Material (Terminal): Brass (electro-tin-plated)
- Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
- Material (Insulator): Nylon
- Rated Voltage: 300V
- Rated Current: 12-15A
- Insulator Temperature: -40°F to 221°F / -40°C to 105°C
- Flame Retardance: UL 94 V-2
- Standard Color: Red
- Applicable Hand Tools: NH 11, NH 32
- Appicable Crimpint Machines: NA 10, NA 3
- Applicable Dies: N10 11, N3 11
- RoHS: RoHS 10
-
Manufacturer:NICHIFU
Product Description
1Package（1Package=100）
Specifications
- AWG: 18-16
- øb: 3.9mm / 0.15"
- øB: 6.9mm / 0.27"
- ød: 1.8mm / 0.07"
- øD: 3.2mm / 0.13"
- L: 26.2mm / 1.03"
- F: 15mm / 0.59"
- H: 11.2mm / 0.44"
- Wire Size Range for Stranded Wire: 0.75-1.25mm²
- Material (Terminal): Brass (electro-tin-plated)
- Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
- Material (Insulator): Nylon
- Rated Voltage: 300V
- Rated Current: 12-15A
- Insulator Temperature: -40°F to 221°F / -40°C to 105°C
- Flame Retardance: UL 94 V-2
- Standard Color: Red
- Applicable Hand Tools: NH 11, NH 32
- Appicable Crimpint Machines: NA 10, NA 3
- Applicable Dies: N10 11, N3 11
- RoHS: RoHS 10
