PC2005-F-CLR (Package Qty=100)
Available
Login to View Price
1Package（1Package=100）

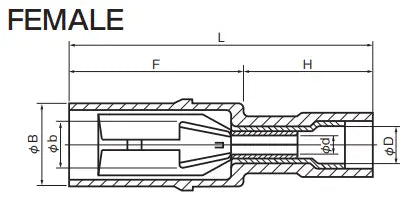

Specifications
- AWG: 20-18
- øb: 2mm / 0.08"
- øB: 4.7mm / 0.19"
- ød: 1.7mm / 0.07"
- øD: 3.1mm / 0.12"
- L: 24.5mm / 0.96"
- F: 13mm / 0.51"
- H: 11.5mm / 0.45"
- Wire Size Range for Stranded Wire: 0.50-0.75mm²
- Material (Terminal): Brass (electro-tin-plated)
- Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
- Material (Insulator): Nylon
- Rated Voltage: 300V
- Rated Current: 10-12A
- Insulator Temperature: -40°F to 221°F / -40°C to 105°C
- Flame Retardance: UL 94 V-2
- Standard Color: Translucent
- Applicable Hand Tools: NH 5, NH 32
- Appicable Crimpint Machines: NA 10, NA 3
- Applicable Dies: N10 10, N3 15
- RoHS: RoHS 10
-
Manufacturer:NICHIFU
Product Description
1Package（1Package=100）
Specifications
- AWG: 20-18
- øb: 2mm / 0.08"
- øB: 4.7mm / 0.19"
- ød: 1.7mm / 0.07"
- øD: 3.1mm / 0.12"
- L: 24.5mm / 0.96"
- F: 13mm / 0.51"
- H: 11.5mm / 0.45"
- Wire Size Range for Stranded Wire: 0.50-0.75mm²
- Material (Terminal): Brass (electro-tin-plated)
- Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
- Material (Insulator): Nylon
- Rated Voltage: 300V
- Rated Current: 10-12A
- Insulator Temperature: -40°F to 221°F / -40°C to 105°C
- Flame Retardance: UL 94 V-2
- Standard Color: Translucent
- Applicable Hand Tools: NH 5, NH 32
- Appicable Crimpint Machines: NA 10, NA 3
- Applicable Dies: N10 10, N3 15
- RoHS: RoHS 10
