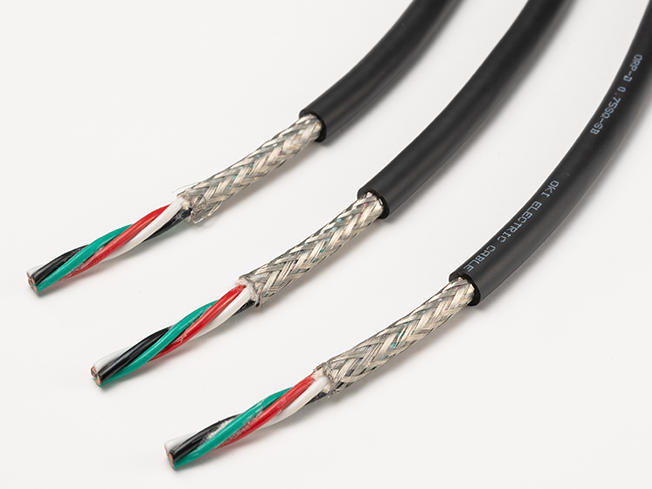

ORP-D Cable Series

Product Description

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Make to order should be confirmed with us.

*Pairs and Conductor size should be confirmed with us.

UL 758 Style 2586 105˚C 600 V

Power/drive cable of the ORP cable series.
Supports a 600 V rating while having the small diameter of a 300 V rating product.

Features

●    Employs our unique special elastomer insulation to balance both excellent
mobility and low-cost.
●    Supports a 600 V rating while having the small diameter of a 300 V rating
product! Compatibility with standard 300 V rated cables is guaranteed.
●    Thanks to their excellent flexibility, optimal for small devices with limited mounting space and troublesome wiring.
●    Quick delivery available for your desired length starting from 10 m (in 1 m units).

Specifications

Special characteristics

Line-up

Product code indication

●    Without shielding: ORP-D (1) SQ × (2) C (2586)
●    With shielding: ORP-D (2) SQ × (2) C (SB) (2586)

(1): Conductor sq. mm (mm2)

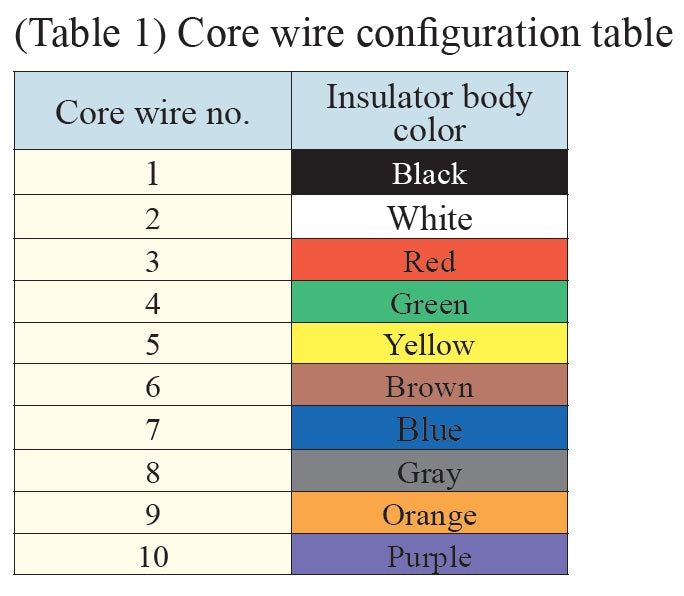

(2): Number of core wires (See the chart below.)
