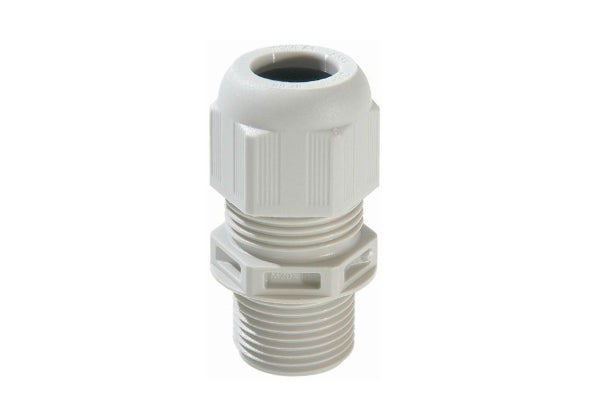

KV/M-L 1.5mm GR cable gland series
For Quotation, please click the Contact Us button below.
Thread type: metric
Thread size: 12mm,16mm,20mm,25mm,32mm,40mm,50mm,63mm
Thread pitch: 1.5mm
Material: Polyamide
Protection: IP68-5 bar
Color: Light grey
Country of origin: EU/DE
Flammability class UL 94: V-0
Working temperature, min. : -40 °C
Working temperature, max. : 100 °C
Sealing material : EPDM
Halogen-free
Size & SPQ
| Item name | Thread size x Thread pitch | Product number | SPQ (packing unit) |
| KV/M-L 12x1,5 GR | 12mmx1.5mm | 17599.2 | 50 |
| KV/M-L 16x1,5 GR | 16mmx1.5mm | 17600.2 | 50 |
| KV/M-L 20x1,5 GR | 20mmx1.5mm | 17601.2 | 50 |
| KV/M-L 25x1,5 GR | 25mmx1.5mm | 17602.2 | 50 |
| KV/M-L 32x1,5 GR | 32mmx1.5mm | 17603.2 | 25 |
| KV/M-L 40x1,5 GR | 40mmx1.5mm | 17604.2 | 10 |
| KV/M-L 50x1,5 GR | 50mmx1.5mm | 17605.2 | 10 |
| KV/M-L 63x1,5 GR | 63mmx1.5mm | 17606.2 | 10 |
Data sheet
Data sheet Download -KV/M-L 12x1,5 GR
Data sheet Download -KV/M-L 16x1,5 GR
Data sheet Download -KV/M-L 20x1,5 GR
Data sheet Download -KV/M-L 25x1,5 GR
Data sheet Download -KV/M-L 32x1,5 GR
Data sheet Download -KV/M-L 40x1,5 GR
Data sheet Download -KV/M-L 50x1,5 GR
Data sheet Download -KV/M-L 63x1,5 GR
-
Manufacturer:Conta clip
