KV/Mex-e 1.5mm BK cable gland series
Available
Login to View Price
For Quotation, please click the Contact Us button below.

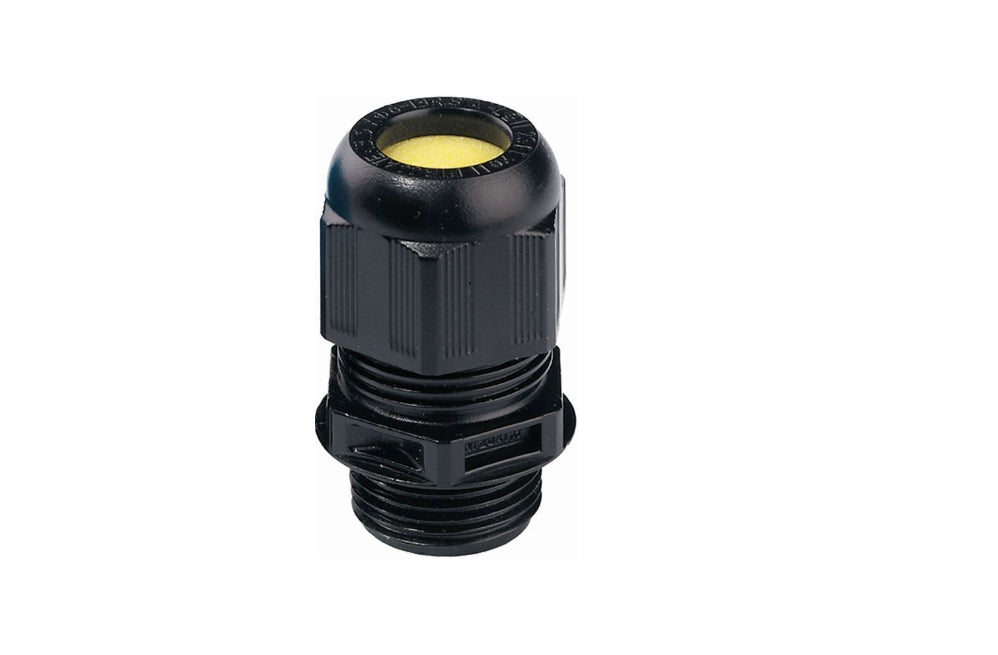

Cable gland
Thread type: metric
Thread size: 16mm,20mm,25mm,32mm,40mm,50mm,63mm
Thread pitch: 1.5mm
Material: Polyamide
Protection: IP68
Color: Black
Country of origin: EU
Flammability class UL 94: V-0
Working temperature, min. : -20 °C
Working temperature, max. : 75 °C
Type of seal : Seal ring
Halogen-free
Size & SPQ
| Item name | Thread size x Thread pitch | Product number | SPQ (packing unit) |
| KV/Mex-e 16x1,5 BK | 16mmx1.5mm | 17500.4 | 50 |
| KV/Mex-e 20x1,5 BK | 20mmx1.5mm | 17501.4 | 50 |
| KV/Mex-e 25x1,5 BK | 25mmx1.5mm | 17502.4 | 50 |
| KV/Mex-e 32x1,5 BK | 32mmx1.5mm | 17503.4 | 25 |
| KV/Mex-e 40x1,5 BK | 40mmx1.5mm | 17504.4 | 10 |
| KV/Mex-e 50x1,5 BK | 50mmx1.5mm | 17505.4 | 4 |
| KV/Mex-e 63x1,5 BK | 63mmx1.5mm | 17506.4 | 1 |
Data sheet
-
Manufacturer:Conta clip
Product Description
For Quotation, please click the Contact Us button below.
Cable gland
Thread type: metric
Thread size: 16mm,20mm,25mm,32mm,40mm,50mm,63mm
Thread pitch: 1.5mm
Material: Polyamide
Protection: IP68
Color: Black
Country of origin: EU
Flammability class UL 94: V-0
Working temperature, min. : -20 °C
Working temperature, max. : 75 °C
Type of seal : Seal ring
Halogen-free
Size & SPQ
| Item name | Thread size x Thread pitch | Product number | SPQ (packing unit) |
| KV/Mex-e 16x1,5 BK | 16mmx1.5mm | 17500.4 | 50 |
| KV/Mex-e 20x1,5 BK | 20mmx1.5mm | 17501.4 | 50 |
| KV/Mex-e 25x1,5 BK | 25mmx1.5mm | 17502.4 | 50 |
| KV/Mex-e 32x1,5 BK | 32mmx1.5mm | 17503.4 | 25 |
| KV/Mex-e 40x1,5 BK | 40mmx1.5mm | 17504.4 | 10 |
| KV/Mex-e 50x1,5 BK | 50mmx1.5mm | 17505.4 | 4 |
| KV/Mex-e 63x1,5 BK | 63mmx1.5mm | 17506.4 | 1 |
