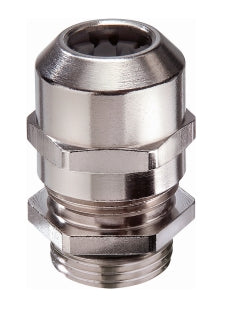

KV/M-L 1.5mm-MS Brass cable gland series (Nickel-plated brass)
For Quotation, please click the Contact Us button below.
Cable gland
Thread type: metric
Thread size: 12mm,16mm,20mm,25mm,32mm,40mm,50mm,63mm
Thread pitch: 1.5mm
Material: Brass
Surface: Nickel
Protection: IP69K/IP68-5 bar
Color: Natural
Country of origin: DE
Flammability class UL 94: V-0
Working temperature, min. : -40 °C
Working temperature, max. : 100 °C
Sealing material: EPDM
Size & SPQ
| Item name | Thread size x Thread pitch | Product number | SPQ (packing unit) |
| KV/M-L 12x1,5-MS | 12mmx1.5mm | 17770.2 | 50 |
| KV/M-L 16x1,5 MS | 16mmx1.5mm | 17771.2 | 50 |
| KV/M-L 20x1,5 MS | 20mmx1.5mm | 17772.2 | 50 |
| KV/M-L 25x1,5 MS | 25mmx1.5mm | 17773.2 | 50 |
| KV/M-L 32x1,5 MS | 32mmx1.5mm | 17774.2 | 25 |
| KV/M-L 40x1,5 MS | 40mmx1.5mm | 17775.2 | 10 |
| KV/M-L 50x1,5 MS | 50mmx1.5mm | 17776.2 | 10 |
| KV/M-L 63x1,5 MS | 63mmx1.5mm | 17777.2 | 10 |
Data sheet
Data sheet Download -KV/M-L 12x1,5 MS
Data sheet Download -KV/M-L 16x1,5 MS
Data sheet Download -KV/M-L 20x1,5 MS
Data sheet Download -KV/M-L 25x1,5 MS
Data sheet Download -KV/M-L 32x1,5 MS
Data sheet Download -KV/M-L 40x1,5 MS
Data sheet Download -KV/M-L 50x1,5 MS
Data sheet Download -KV/M-L 63x1,5 MS
-
Manufacturer:Conta clip
