KST-UL21795 (1coil/100m≒328ft)

Available
10
Login to View Price

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Make to order should be confirm with us.

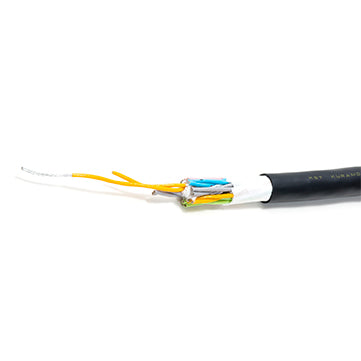

KURAMO Thin and Slippery Robot Cable
UL AWM 21795

Use
・Wiring to cable carriers and robots
・Wiring in oil environment

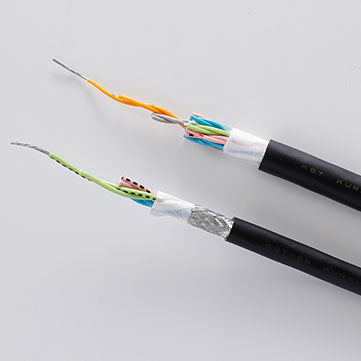

・Wiring to the portion requiring noise resistance( Shielded type:KST-SB-UL21795)


Features
・UL/cUL AWM compliance
・Heat resistance, oil resistance, bending resistance, movable
・Flexible 0.08㎜ wire strand
・Noise resistance( Shielded type:KST-SB-UL21795)
・Slippery sheath, mat type


Temperature range
Fixed:-30 〜105℃ ※
Flexing:0 〜105℃
※ If you use it in temperature less than 0℃ , you should be careful about shocks, flexure, vibration and so on.

Bending radius
Fixed:4 times or more of the cable diameter
Flexing:7.5 times or more of the cable diameter

RoHS Directive
Conformity

Technical data

Technical data KST

Construction
Construction KST
Conductors Identification

Conductors identification KST

Example : KST-UL21795  4P  ×0.2㎟ (24AWG)
Example : KST-UL21795  4P×0.2mm2(24AWG)Construction table

Construction table KST

Allowable ampacity

Allowable ampacity (A) for cable is based on calculation under aerial one-cable and temperature at 30℃ , not repressenting a guaranteed value.


Allowable ampacity cable at ambient temperature abobe 30℃ is to be determined by multiplying the current value by the appropriate current reduction factorin the following table1.
The allowable ampacity for cable are the calculated by JCS0168, but not guaranteed.


JCS0168 Calculation of the current rating of power cables for rated voltage up to and including 33kV”

Table1 Current reduction factors
Table1 Current reduction factors KDF


  • Certification:
    KST-UL21795  (1coil/100m≒328ft) KST-UL21795  (1coil/100m≒328ft)
  • Category:
    Robot Cables,Global Cables
  • Manufacturer:
    Kuramo
  • Insulator:
    Heat resistant PVC
  • Flame Retardant
  • Flexible Robot Cable
  • Heat Resistant
  • Oil Resistant
  • Torsion Resistant
Nominal cross sectional area
Number of conductors
Product Description

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Make to order should be confirm with us.



KURAMO Thin and Slippery Robot Cable
UL AWM 21795

Use
・Wiring to cable carriers and robots
・Wiring in oil environment
・Wiring to the portion requiring noise resistance( Shielded type:KST-SB-UL21795)


Features
・UL/cUL AWM compliance
・Heat resistance, oil resistance, bending resistance, movable
・Flexible 0.08㎜ wire strand
・Noise resistance( Shielded type:KST-SB-UL21795)
・Slippery sheath, mat type


Temperature range
Fixed:-30 〜105℃ ※
Flexing:0 〜105℃
※ If you use it in temperature less than 0℃ , you should be careful about shocks, flexure, vibration and so on.

Bending radius
Fixed:4 times or more of the cable diameter
Flexing:7.5 times or more of the cable diameter

RoHS Directive
Conformity

Specifications

Technical data

Technical data KST

Construction
Construction KST
Conductors Identification

Conductors identification KST

Example : KST-UL21795  4P  ×0.2㎟ (24AWG)
Example : KST-UL21795  4P×0.2mm2(24AWG)Construction table

Construction table KST

Allowable ampacity

Allowable ampacity (A) for cable is based on calculation under aerial one-cable and temperature at 30℃ , not repressenting a guaranteed value.


Allowable ampacity cable at ambient temperature abobe 30℃ is to be determined by multiplying the current value by the appropriate current reduction factorin the following table1.
The allowable ampacity for cable are the calculated by JCS0168, but not guaranteed.


JCS0168 Calculation of the current rating of power cables for rated voltage up to and including 33kV”

Table1 Current reduction factors
Table1 Current reduction factors KDF
