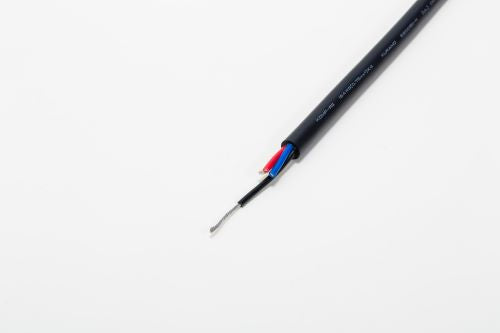

KOMP-RII (1coil/100m≒328ft)

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Make to order should be confirm with us.

The KOMP Series are FA network cables designed to comply with the ODVA proposed FA Open Network, CompoNet specifications.
Flexibility, oil resistance, heat resistance(90℃ ), flame resistance (vertical tray flame test), UL13(PLTC), UL444(CMG)

Size：19AWG(0.75mm2 ) × 4
Insulation：Heat resistant PVC
Sheath：Oil and heat resistant PVC (Black)
Insulation color：Blue, White, Black, Red
Overall diameter：Approx.7.7mm
Approx. mass per unit length：90kg/km
Adaptation standard(Rating : Voltage and Temperature)：
UL13(PLTC) : (--, 90°C ) , UL444(CMG) : (--, 90°C)
CSA C22.2 No.214(CMG) : (--, 90°C )

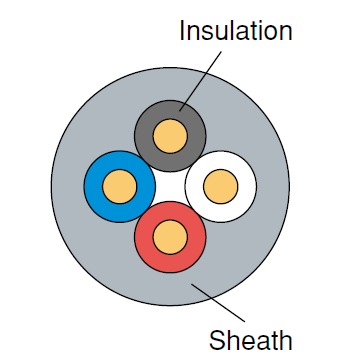

Construction
