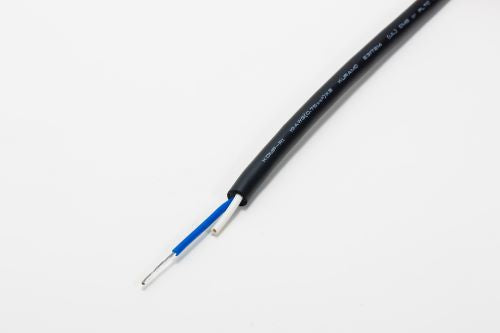

KOMP-RI (1coil/100m≒328ft)

Available
Login to View Price

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Make to order should be confirm with us.



The KOMP Series are FA network cables designed to comply with the ODVA proposed FA Open Network, CompoNet specifications.
Flexibility, oil resistance, heat resistance(90℃ ), flame resistance (vertical tray flame test), UL13(PLTC), UL444(CMG)

Size:19AWG(0.75mm2 ) × 2
Insulation:Heat resistant PVC
Sheath:Oil and heat resistant PVC
Insulation color:Blue, White
Overall diameter:Approx.6.7mm
Approx. mass per unit length:65kg/km
Adaptation standard(Rating : Voltage and Temperature):
UL13(PLTC) : (--, 90°C) , UL444(CMG) : (--, 90°C)
CSA C22.2 No.214(CMG) : (--, 90°C )

Specifications_KOMP-RI

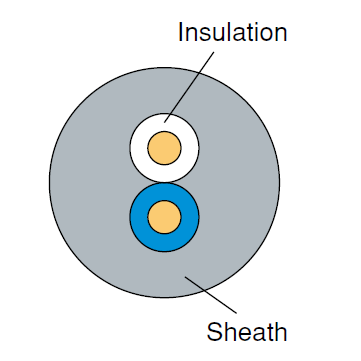

Construction

Construction_KOMP-RI

  • Certification:
    KOMP-RI  (1coil/100m≒328ft) KOMP-RI  (1coil/100m≒328ft) KOMP-RI  (1coil/100m≒328ft)
  • Category:
    Network Cables,Global Cables
  • Manufacturer:
    Kuramo
  • Insulator:
    Heat resistant PVC
  • Flame Retardant
  • Heat Resistant
  • Oil Resistant
Product Description

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Make to order should be confirm with us.



The KOMP Series are FA network cables designed to comply with the ODVA proposed FA Open Network, CompoNet specifications.
Flexibility, oil resistance, heat resistance(90℃ ), flame resistance (vertical tray flame test), UL13(PLTC), UL444(CMG)

Specifications

Size:19AWG(0.75mm2 ) × 2
Insulation:Heat resistant PVC
Sheath:Oil and heat resistant PVC
Insulation color:Blue, White
Overall diameter:Approx.6.7mm
Approx. mass per unit length:65kg/km
Adaptation standard(Rating : Voltage and Temperature):
UL13(PLTC) : (--, 90°C) , UL444(CMG) : (--, 90°C)
CSA C22.2 No.214(CMG) : (--, 90°C )

Specifications_KOMP-RI

Construction

Construction_KOMP-RI

PDF Catalog
Download
