KNPEV-Series (JMACS)
For Quotation, please click the Contact Us button below.
(1coil/100m≒328ft) Basically 100m MOQ,
Cutting under 100m or Make to order should be confirmed with us.

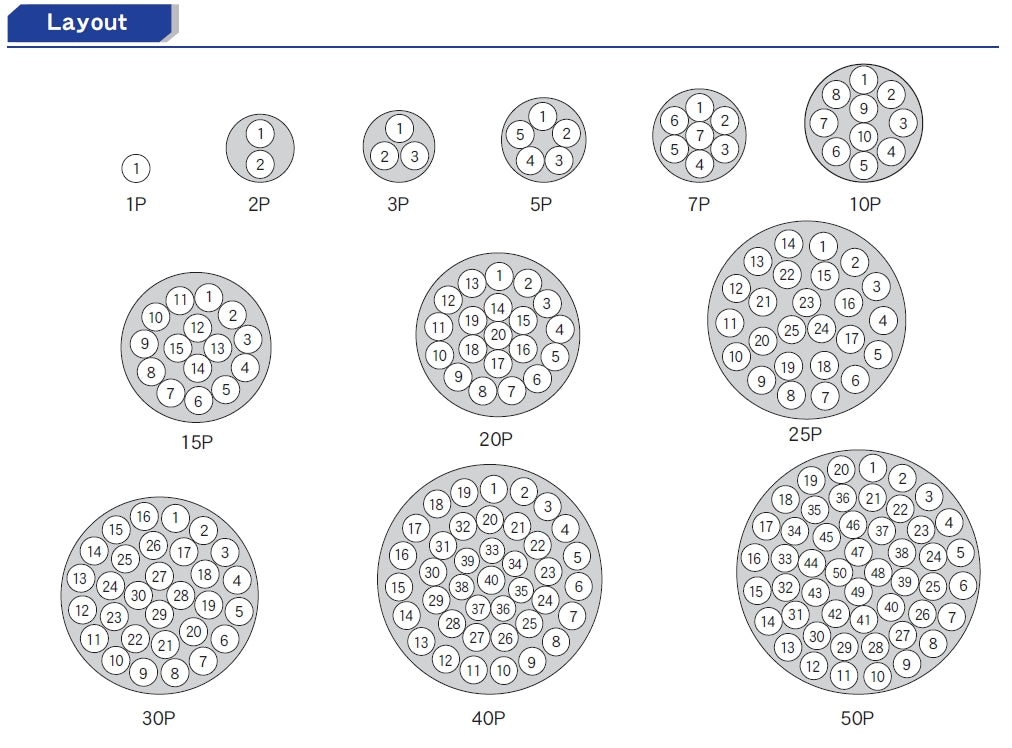

*Pairs and Conductor size should be confirmed with us.
Applications
Instrumentation cables are for low-voltage circuits (60V or less), used for wiring in the automatic controls of various production equipment in factories and in centralized control systems as well as circuits for office computer systems.
KN Series instrumentation cables from JMACS support a wide range of uses, from factories to offices.
Features

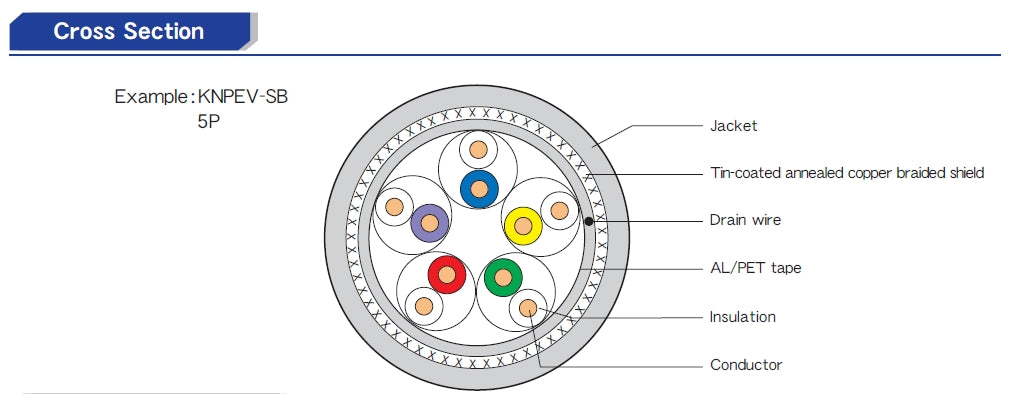

KNPEV-SB with standard specifications has the following outstanding features.
Workability
◆Tin-coated annealed copper for the conductor prevents bad connections caused by corrosion.
◆Identification of the entire core prevents wiring errors and simplifies connection work.
◆Inserted drain wire makes shield ground wiring easy.
◆Excellent flexibility due to use of a lead-free, highly flexible PVC compound for the jacket and a braided shield structure.
Electrical Properties
◆Polyethylene with superior electrical properties is used for insulation.
Noise Resistant

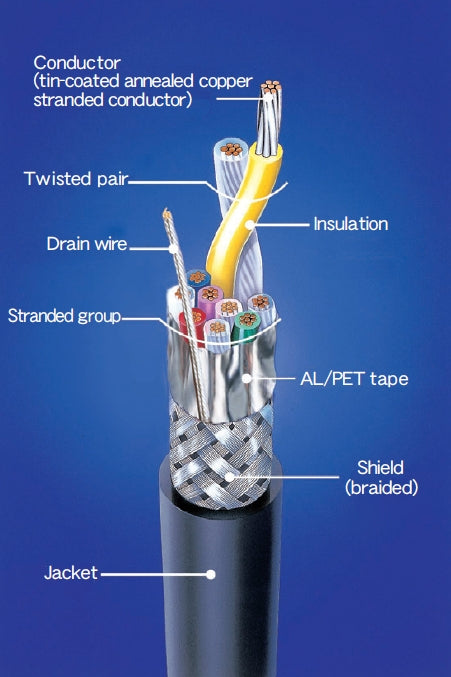

◆Double shielding—AL/PET tape applied under tin-coated annealed copper braided shield—and a twisted pair structure prevent noise caused by electrostatic induction and induction between circuits (cross talk).
Flame Retardant
◆Cable passes UL VW-1 (vertical-specimen flame test) for flame retardance.
Heat Resistant
◆Heat resistant property of the jacket maintains cable stability under high temperatures. （operating temperature:75℃）
Oil Resistant
◆Since jacket uses an oil resistant PVC, it can be used in locations such as factories, where cutting oil and lubrication oil are likely to adhere to surfaces.
*Production of UL standard product is also available.
（UL758 AWM20276、2464）Model number is ”KNPCV-SB”. This model is a build-to-order manufacturing.
-
