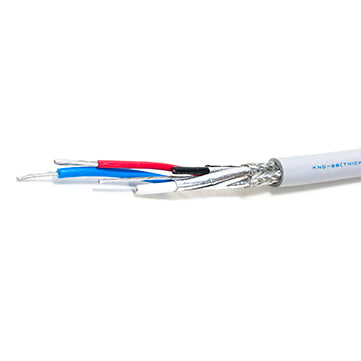

KND-SB（THICK） (1coil/100m≒328ft)
For Quotation, please click the Contact Us button below.
(1coil/100m≒328ft) Basically 100m MOQ,
Cutting under 100m or Make to order should be confirmed with us.
The KND-SB Series are FA network cables designed to comply with the ODVA proposed FA Open Network, DeviceNet specifications. The KND-SB Series cables are of signal/power pair combined type, providing labor savings in cable connection work.
Features
Electrical characteristics and construction suited to DeviceNet specifications
Double shield, oil resistance, heat resistance （75℃）, flame resistance （vertical tray flame test, FT-4）
UL/CSA certification (UL13 CL2/PLTC, CSA AWM)
※The use of the cable at high ambient temperature may cause its transmittable distance to be shortened.
Size：18AWG × 1P+15AWG × 1P
Insulation：PEF+PVC
Shield：Aluminum/polyester laminate tape + Tin coated annealed copper braid
Sheath：Oil and heat resistant, flame resistant PVC
Sheath color： light gray
Sheath Overall diameter：Approx.12㎜
Adaptation standard：
UL13(PLTC)
CSA C22.2 No.210(AWM)
Construction

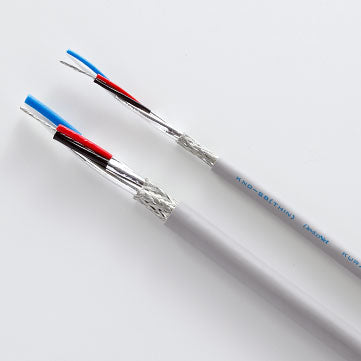

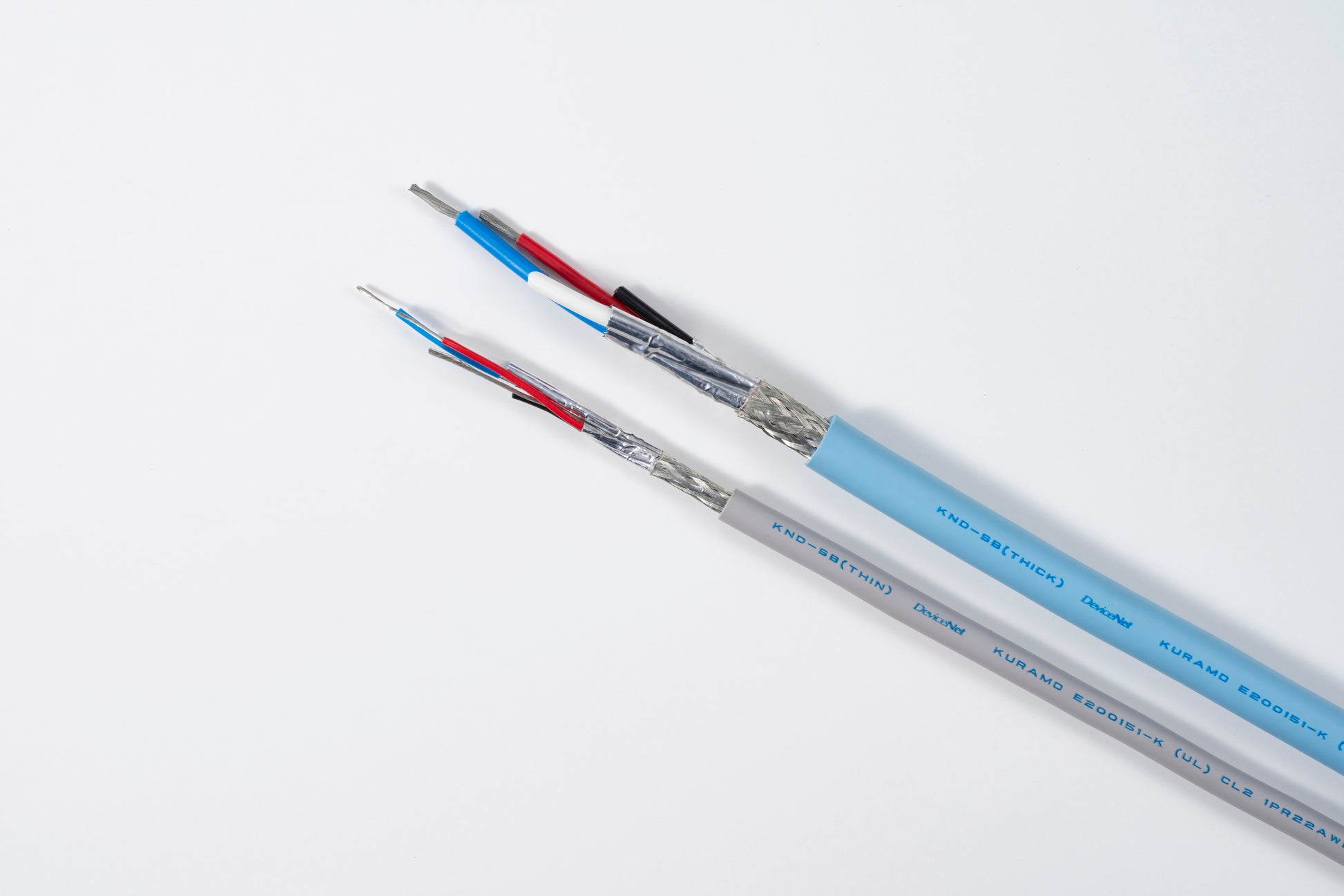

Looking for a more flexible option? The KND‑SB Series is also offered in a THIN type, designed for easier handling and tighter installation spaces. You can view the THIN model on our product page.
KND‑SB(THIN) and KND‑SBZ(THIN) is also available.
-
Certification:
-
Category:Network Cables,Global Cables
-
Manufacturer:Kuramo
-
Insulator:PEF
Product Description
For Quotation, please click the Contact Us button below.
(1coil/100m≒328ft) Basically 100m MOQ,
Cutting under 100m or Make to order should be confirmed with us.
The KND-SB Series are FA network cables designed to comply with the ODVA proposed FA Open Network, DeviceNet specifications. The KND-SB Series cables are of signal/power pair combined type, providing labor savings in cable connection work.
Features
Electrical characteristics and construction suited to DeviceNet specifications
Double shield, oil resistance, heat resistance （75℃）, flame resistance （vertical tray flame test, FT-4）
UL/CSA certification (UL13 CL2/PLTC, CSA AWM)
※The use of the cable at high ambient temperature may cause its transmittable distance to be shortened.
Specifications
Size：18AWG × 1P+15AWG × 1P
Insulation：PEF+PVC
Shield：Aluminum/polyester laminate tape + Tin coated annealed copper braid
Sheath：Oil and heat resistant, flame resistant PVC
Sheath color： light gray
Sheath Overall diameter：Approx.12㎜
Adaptation standard：
UL13(PLTC)
CSA C22.2 No.210(AWM)
Construction
Looking for a more flexible option? The KND‑SB Series is also offered in a THIN type, designed for easier handling and tighter installation spaces. You can view the THIN model on our product page.
KND‑SB(THIN) and KND‑SBZ(THIN) is also available.
