KETH-STZ (1coil/100m≒328ft)

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Make to order should be confirm with us.

Size：28AWG×4P
Insulation：Crosslinked polyethylene
Sheath：Oil resistant PVC
Sheath color：Black
Sheath overall diameter：Approx.5.2mm
Approx. mass per unit length：35kg/km
Maximum transmission distance (20°C) ：25m
Adaptation standard(Rating : Voltage and Temperature)：
TIA/EIA-568-B.2 Category 5e
UL758 (AWM STYLE 20276)
CSA C22.2 No.210(AWM)

Transmission parameter specification

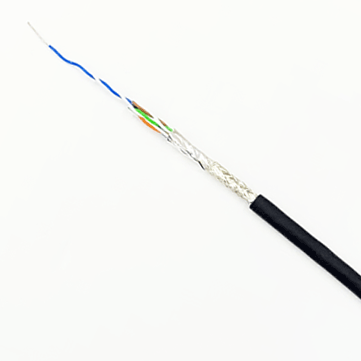

Construction
