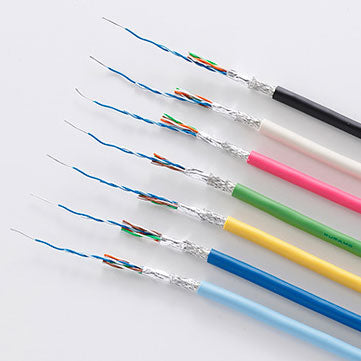

KETH-ST (1coil/100m≒328ft)

Specifications

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Make to order should be confirm with us.

Size：28AWG×4P
Insulation：PE
Sheath：Oil and heat resistant PVC
Sheath color：Black, Blue,Light blue, Green, Yellow, Ivory, Pink
Sheath overall diameter：Approx.5.2mm
Approx. mass per unit length：35kg/km
Maximum transmission distance (20°C) ：50m
Temperature rating：75°C
Adaptation standard(Rating : Voltage and Temperature)：
TIA/EIA-568-B.2 Category 5e
UL444(CM),CSA C22.2 No.214(CM)

Transmission parameter specification

Construction
