KES GR (Cable Entry) Series
Available
Login to View Price
For Quotation, please click the Contact Us button below.

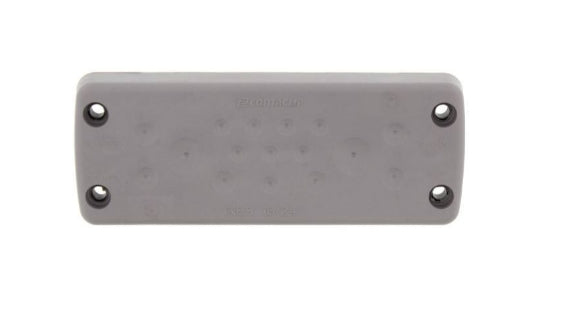

Cable Entry

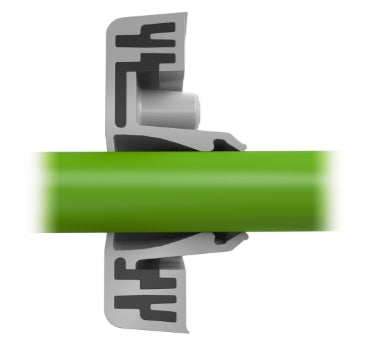

Cable entry with membrane for unassembled cables.
Mounting type: Screw.
Degree of protection: IP66
Country of origin: DE
Color: Grey
Size & SPQ
| Item name | Holes | Length x Width x Installation height (mm) | Product number | SPQ (packing unit) |
| KES 13/24 GR | 13 | 149.6mmx58mmx14.5mm | 28630.6 | 10 |
| KES 14/24 GR | 14 | 149.6mmx58mmx14.5mm |
28631.6 |
10 |
| KES 16/24 GR | 16 | 149.6mmx58mmx14.5mm | 28632.6 | 10 |
| KES 16-1/24 GR | 16-1 | 149.6mmx58mmx14.5mm | 28633.6 | 10 |
| KES 17/24 GR | 17 | 149.6mmx58mmx14.5mm | 28634.6 |
10 |
| KES 20/24 GR | 20 | 149.6mmx58mmx14.5mm | 28635.6 | 10 |
| KES 21/24 GR | 21 | 149.6mmx58mmx14.5mm | 28636.6 | 10 |
| KES 32/24 GR | 32 | 149.6mmx58mmx14.5mm | 28637.6 | 10 |
Datasheet
Data sheet Download -KES 13/24 GR 28630.6Data sheet Download -KES 14/24 GR 28631.6
Data sheet Download -KES 16/24 GR 28632.6
Data sheet Download -KES 16-1/24 GR 28633.6
Data sheet Download -KES 17/24 GR 28634.6
Data sheet Download -KES 20/24 GR 28635.6
Data sheet Download -KES 21/24 GR 28636.6
Data sheet Download -KES 32/24 GR 28637.6
-
Manufacturer:Conta clip
Product Description
For Quotation, please click the Contact Us button below.
Cable Entry
Cable entry with membrane for unassembled cables.
Mounting type: Screw.
Degree of protection: IP66
Country of origin: DE
Color: Grey
Size & SPQ
| Item name | Holes | Length x Width x Installation height (mm) | Product number | SPQ (packing unit) |
| KES 13/24 GR | 13 | 149.6mmx58mmx14.5mm | 28630.6 | 10 |
| KES 14/24 GR | 14 | 149.6mmx58mmx14.5mm |
28631.6 |
10 |
| KES 16/24 GR | 16 | 149.6mmx58mmx14.5mm | 28632.6 | 10 |
| KES 16-1/24 GR | 16-1 | 149.6mmx58mmx14.5mm | 28633.6 | 10 |
| KES 17/24 GR | 17 | 149.6mmx58mmx14.5mm | 28634.6 |
10 |
| KES 20/24 GR | 20 | 149.6mmx58mmx14.5mm | 28635.6 | 10 |
| KES 21/24 GR | 21 | 149.6mmx58mmx14.5mm | 28636.6 | 10 |
| KES 32/24 GR | 32 | 149.6mmx58mmx14.5mm | 28637.6 | 10 |
Datasheet
Data sheet Download -KES 13/24 GR 28630.6Data sheet Download -KES 14/24 GR 28631.6
Data sheet Download -KES 16/24 GR 28632.6
Data sheet Download -KES 16-1/24 GR 28633.6
Data sheet Download -KES 17/24 GR 28634.6
Data sheet Download -KES 20/24 GR 28635.6
Data sheet Download -KES 21/24 GR 28636.6
Data sheet Download -KES 32/24 GR 28637.6
