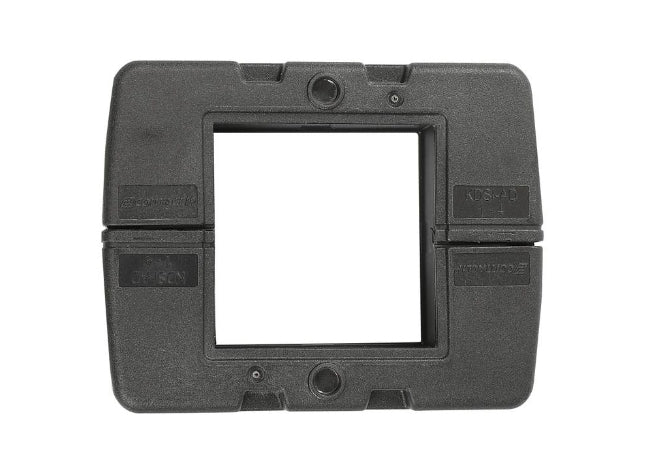

KDSI-SR BK Cable entry Series
For Quotation, please click the Contact Us button below.
Cable Entry
Cable entry with TPE seal.
Mounting type: Screw
Number of screw holes: 4 holes
Degree of protection: IP66
Country of origin: DE
Color: Black
Material: Polyamide 6.6
Flammability class UL 94: V-0
Working temperature, min.: -40 °C
Working temperature, max.: 120 °C
Size & SPQ

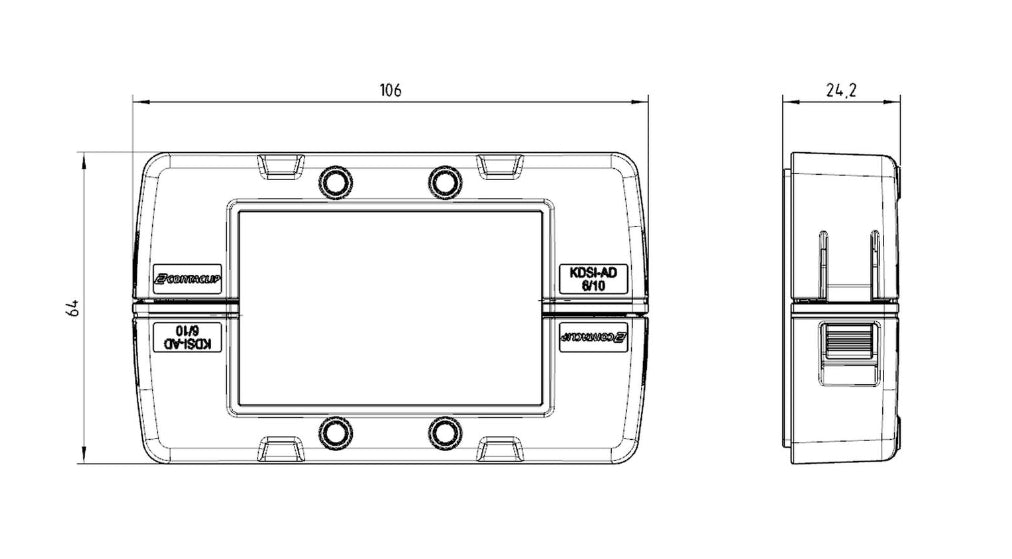

| Item name | Holes | Length x Width x Installation height (mm) | Product number | SPQ (packing unit) |
|
KDSI-SR 1-4 BK |
4 | 81mmx64mmx24.2mm | 28880.4 | 1 |
| KDSI-SR 6/10 BK | 4 | 106mmx64mmx24.2mm |
28881.4 |
1 |
|
KDSI-SR 8/16 BK |
4 | 126mmx64mmx24.2mm | 288882.4 | 1 |
Datasheet
Datasheet download KDSI-SR 1-4 BK 28880.4
Datasheet download KDSI-SR 6/10 BK 28881.4
Datasheet download KDSI-SR 8/16 BK 28882.4
-
Manufacturer:Conta clip
