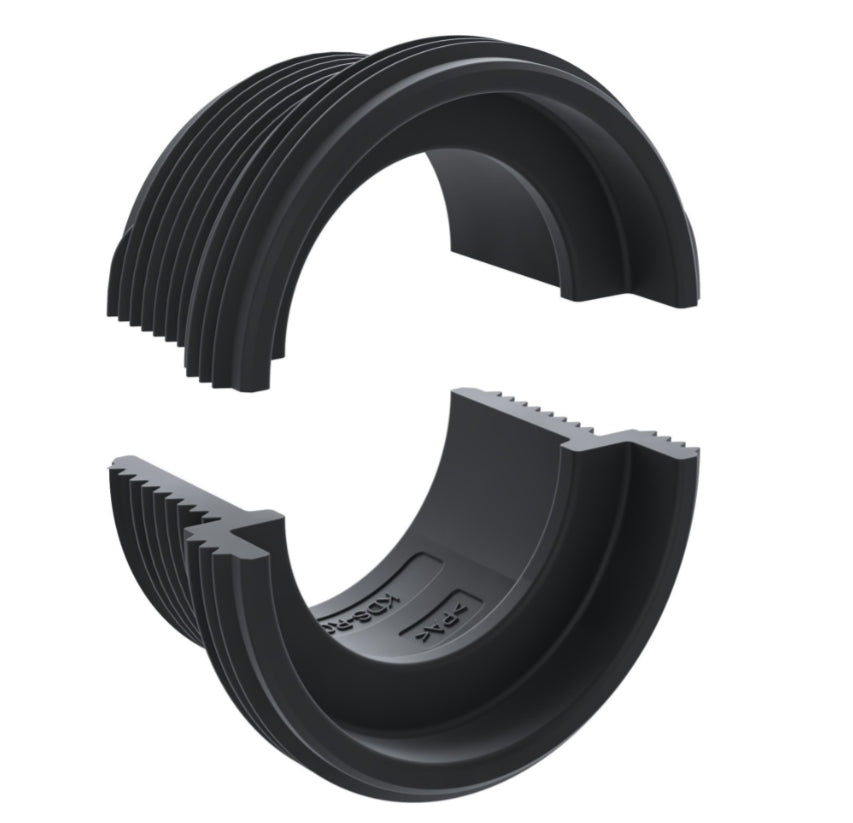

KDS-RGA M series BK (Cable entry)
Available
Login to View Price
For Quotation, please click the Contact Us button below.
KDS-RGA M series BK (Cable entry)
Mounting type: Screws
Degree of protection: IP 66
Material: Polyamide 6.6
Flammability class UL 94: V-0
Working temperature, min.: -40 °C
Working temperature, max.: 120°C
Country of origin: DE
Color: Black
Thread type: Metric
Size & SPQ
Size & SPQ
| Item name | Length x width x height | Product number | SPQ (packing unit) |
| KDS-RGA M20 BK | 38mmx38mmx22.1mm | 28771.4 | 5 |
| KDS-RGA-M25 BK | 38mmx38mmx22.1mm | 28772.4 | 5 |
| KDS-RGA-M32 BK | 45mmx45mmx17.7mm | 28773.4 | 5 |
| KDS-RGA-M40 BK | 70mmx45mmx17.7mm | 28775.4 | 5 |
| KDS-RGA-M50 BK | 70mmx70mmx22.1mm | 28776.4 | 5 |
| KDS-RGA-M63 BK | 70mmx70mmx22.1mm | 28777.4 | 5 |
Data sheet
Data sheet Download -KDS-RGA M20 BK 28771.4
Data sheet Download -KDS-RGA M25 BK 28772.4
Data sheet Download -KDS-RGA M32 BK 28773.4
Data sheet Download -KDS-RGA M40 BK 28775.4
Data sheet Download -KDS-RGA M50 BK 28776.4
Data sheet Download -KDS-RGA M63 BK 28777.4
-
Manufacturer:Conta clip
