KDS-R BK Series (Round Cable Entry)

Available
Login to View Price

For Quotation, please click the Contact Us button below.

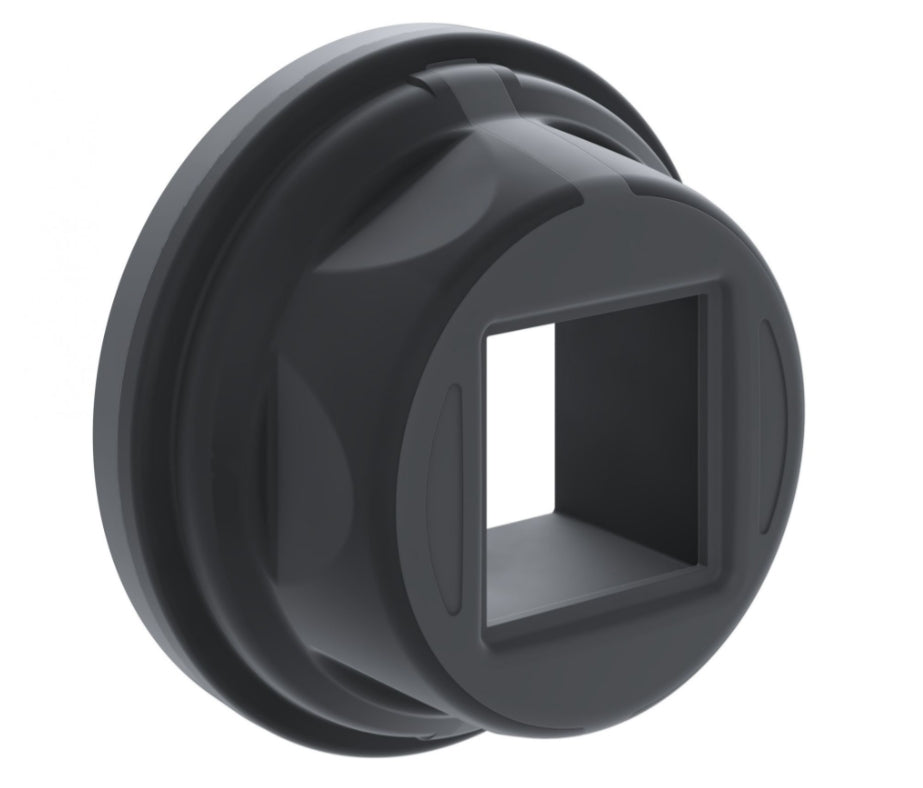

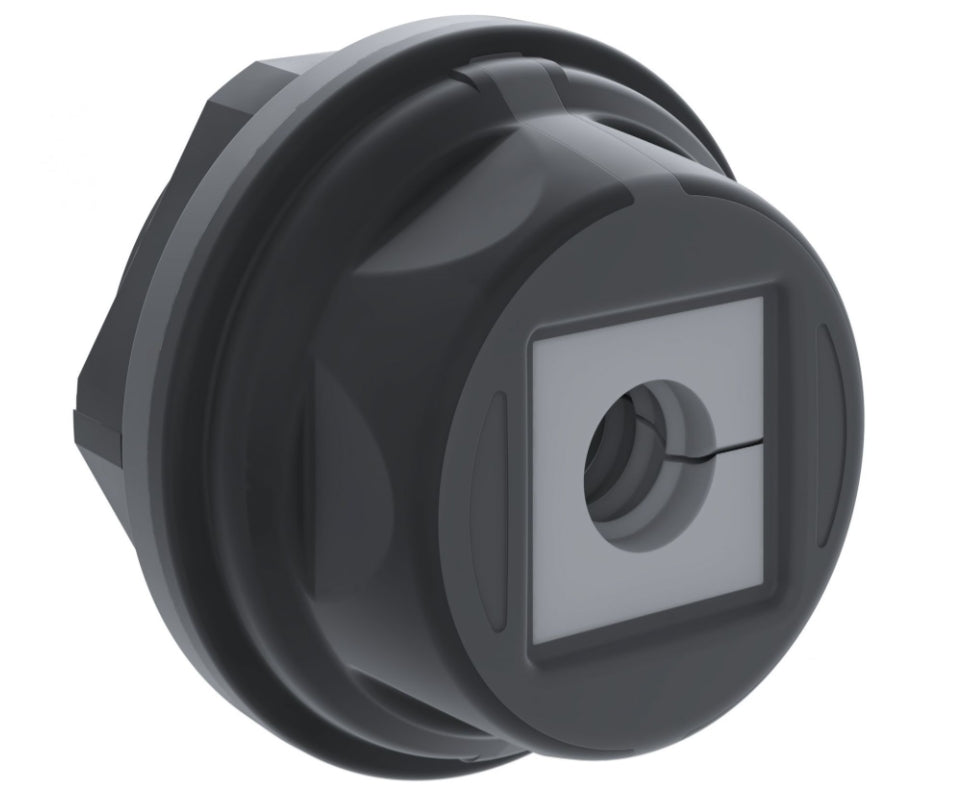

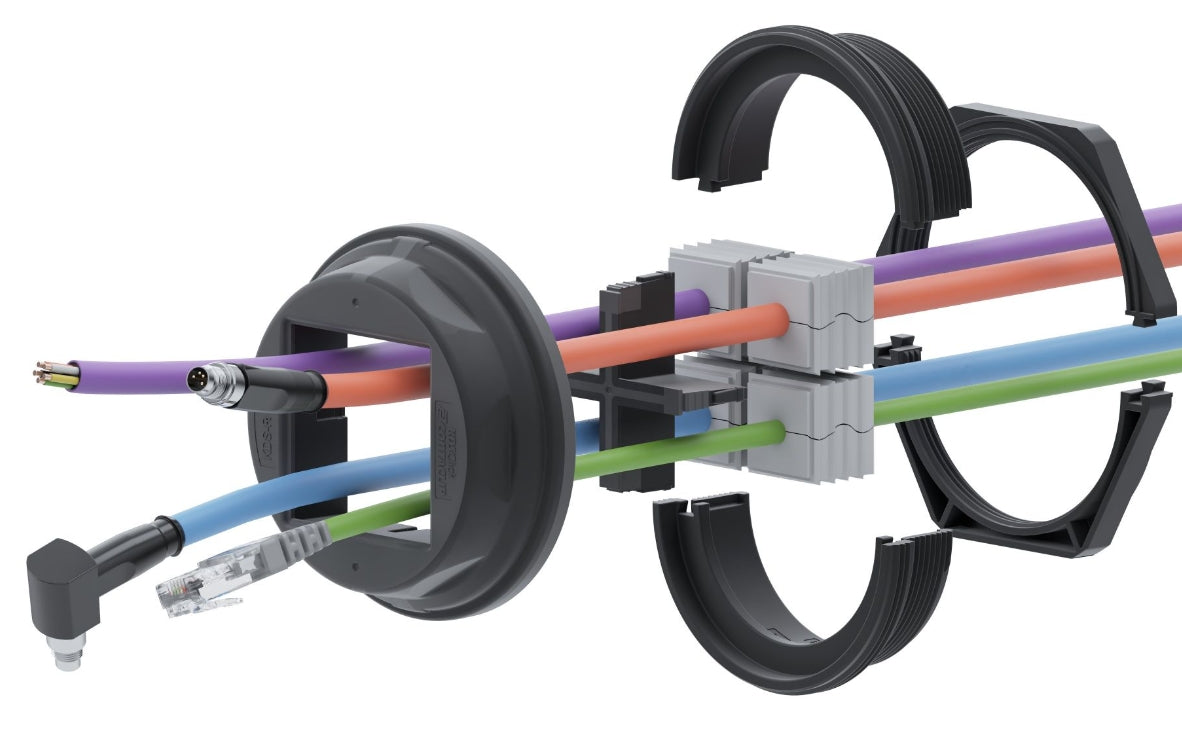

Round Cable Entry

Material: polyamide PA 6.6,glass-fiber reinforced

Country of origin: DE

Flammability class UL 94: V-0
Working temperature, min.: -40 °C
Working temperature, max.: 120 °C
Sealing material: TPE
Mounting type: Screws

Degree of protection: IP66

Color: Black

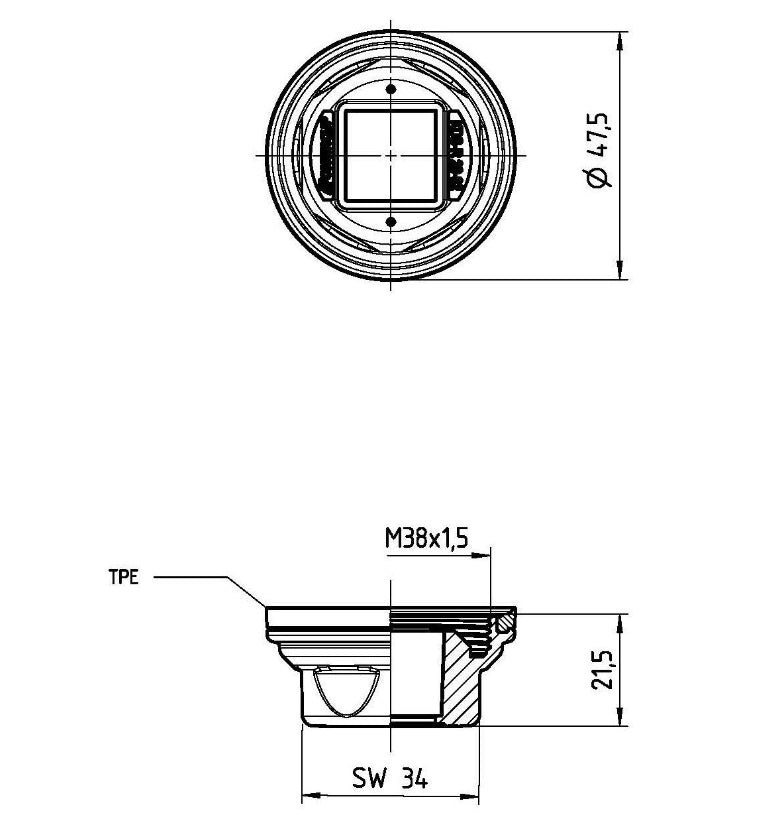

 Item name  Length x Width x Installation height (mm) Product number SPQ (packing unit)
KDS-R 20-32 BK 46.5mmx46.5mmx21.5mm

28770.4



 5



KDS-R 40-63 BK 80mmx80mmx21.5mm 28774.4



 5





Datasheet

Datasheet download KDS-R 20-32 BK

Datasheet download KDS-R 40-63 BK


  • Manufacturer:
    Conta clip
Round Cable Entry Series
Product Description

For Quotation, please click the Contact Us button below.

Round Cable Entry

Material: polyamide PA 6.6,glass-fiber reinforced

Country of origin: DE

Flammability class UL 94: V-0
Working temperature, min.: -40 °C
Working temperature, max.: 120 °C
Sealing material: TPE
Mounting type: Screws

Degree of protection: IP66

Color: Black

 Item name  Length x Width x Installation height (mm) Product number SPQ (packing unit)
KDS-R 20-32 BK 46.5mmx46.5mmx21.5mm

28770.4



 5



KDS-R 40-63 BK 80mmx80mmx21.5mm 28774.4



 5





Datasheet

Datasheet download KDS-R 20-32 BK

Datasheet download KDS-R 40-63 BK
