KDS-DE GR (Sealing Element) Series
Available
Login to View Price
For Quotation, please click the Contact Us button below.

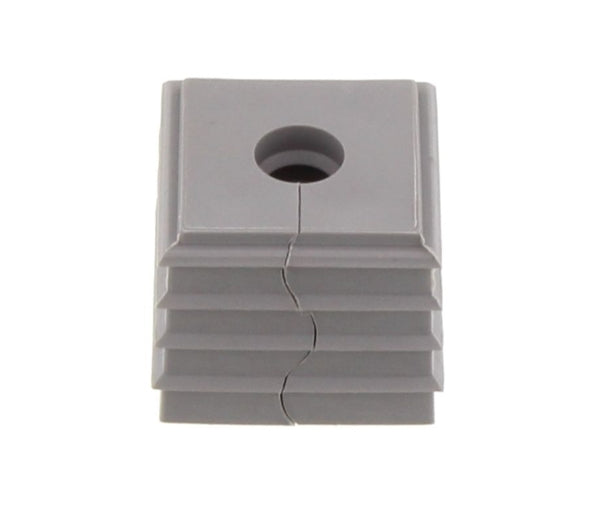

KDS-DE GR (Sealing Element) Series:
Seal, Mounting type: Plug in
Material: TPE
Degree of protection: IP 66
Flammability class: UL 94 V-0
Working temperature: min. -40 °C
Working temperature: max. 90 °C
Halogen-free, Silicone-free
Working temperature: max. 90 °C
Halogen-free, Silicone-free
Color: Grey
Size & SPQ
| Item name | Length x width x height | Cable diameter | Product number | SPQ (packing unit) |
| KDS-DE 4-5 GR | 20.3mmx20.3mmx17.7mm | 5mm | 28565.6 | 10 |
| KDS-DE 5-6 GR | 20.3mmx20.3mmx17.7mm | 6mm | 28566.6 | 10 |
| KDS-DE 6-7 GR | 20.3mmx20.3mmx17.7mm | 7mm | 28567.6 | 10 |
| KDS-DE 7-8 GR | 20.3mmx20.3mmx17.7mm | 8mm | 28568.6 | 10 |
| KDS-DE 8-9 GR | 20.3mmx20.3mmx17.7mm | 9mm | 28569.6 | 10 |
| KDS-DE 9-10 GR | 20.3mmx20.3mmx17.7mm | 10mm | 28570.6 | 10 |
| KDS-DE 10-11 GR | 20.3mmx20.3mmx17.7mm | 11mm | 28571.6 | 10 |
| KDS-DE 11-12 GR | 20.3mmx20.3mmx17.7mm | 12mm | 28572.6 | 10 |
Data sheet
Data sheet Download -KDS-DE 4-5 GR 28565.6
Data sheet Download -KDS-DE 5-6 GR 28566.6
Data sheet Download -KDS-DE 6-7 GR 28567.6
Data sheet Download -KDS-DE 7-8 GR 28568.6
Data sheet Download -KDS-DE 8-9 GR 28569.6
Data sheet Download -KDS-DE 9-10 GR 28570.6
Data sheet Download -KDS-DE 10-11 GR 28571.6
Data sheet Download -KDS-DE 11-12 GR 28572.6
-
Manufacturer:Conta clip
