HK/20276XL LF
For Quotation, please click the Contact Us button below.
(1coil/100m≒328ft) Basically 100m MOQ,
Cutting under 100m or Made to order should be confirm with us.
Application
- Electric equipment cable with UL and cUL at 30V,80°C.(Category : AVLV2, AVLV8)
- Cable for RS485,RS422
Feature

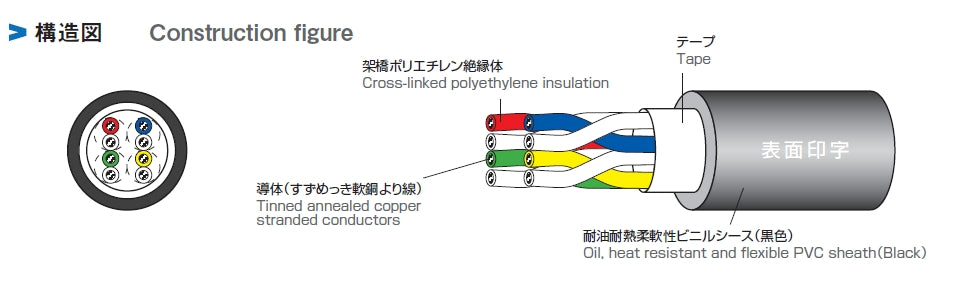

- Cross-linked polyethylene used for insulation.
- Oil and heat resistant and Flexible PVC sheath material is used.
- Filler of which dust doesn't go out easily is used.
- Flame resisting: UL VW-1, cUL FT1.
Allowable ampacity
・The allowable ampacity of this catalog is a value at one in the air construction and the ambient temperature 30℃.
・Allowable ampacity is calculated based on JCS0168.
・Please multiply the following correction coefficient by the ambient temperature.
● Adjustment factors（at ambient temperature）
● Standard sales length
100m. (Sales by short length is available for large sizes. Please contact us which sizes are available. ）
-
Certification:
-
Category:Global Cables,Robot Cables
-
Manufacturer:TAIYO
-
Insulator:Heat resistant PVC
Product Description
For Quotation, please click the Contact Us button below.
(1coil/100m≒328ft) Basically 100m MOQ,
Cutting under 100m or Made to order should be confirm with us.
Application
- Electric equipment cable with UL and cUL at 30V,80°C.(Category : AVLV2, AVLV8)
- Cable for RS485,RS422
Feature
- Cross-linked polyethylene used for insulation.
- Oil and heat resistant and Flexible PVC sheath material is used.
- Filler of which dust doesn't go out easily is used.
- Flame resisting: UL VW-1, cUL FT1.
Allowable ampacity
・The allowable ampacity of this catalog is a value at one in the air construction and the ambient temperature 30℃.
・Allowable ampacity is calculated based on JCS0168.
・Please multiply the following correction coefficient by the ambient temperature.
● Adjustment factors（at ambient temperature）
● Standard sales length
100m. (Sales by short length is available for large sizes. Please contact us which sizes are available. ）
