FANC-IEF-SB(1coil/100m≒328ft)

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Made to order should be confirm with us.

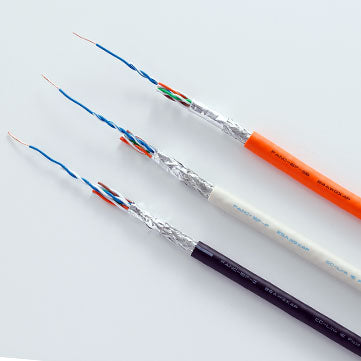

FANC-IEF Series
CC-Link IE Field Network Compliant
Industrial Ethernet Twisted Pair Cable
The FANC-IEF Series are twisted pair cables for CC-Link IE Field Network compliance.
The FANC-IEF Series are designed for use in industrial Ethernet connection and PLC-to-PLC, PLC-to-host computer and other Ethernet connection.
The FANC-IEF Series are designed using oil resistant PVC sheath, allowing them to be used for cable wiring in oil environment.

Size：24AWG × 4P
Insulation：Polyethylene
Shield：Tin coated copper braid
Sheath：Oil resistant polyvinyl chloride

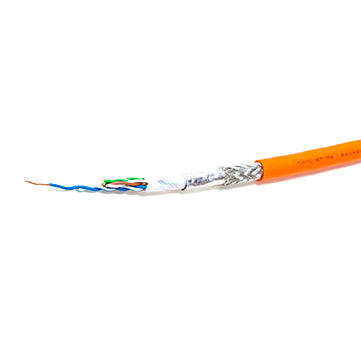

Sheath color：Orange
Sheath Overall diameter：Approx.6.7㎜
Maximum transmission distance (20°C)：100m
Adaptation standard：
TIA/EIA-568-B.2 Category 5e
UL444CM
UL758(AWM STYLE 20276)
CSA C22.2 No.214(CM)
CSA C22.2 No.210(AWM)

Transmission parameter specification

Construction
