Product Description
For Quotation, please click the Contact Us button below.
(1coil/100m≒328ft) Basically 100m MOQ,
Cutting under 100m or Made to order should be confirm with us.
Application
- Appropriate for cable chain wiring for high-speed moving.
- Cable chain test 50 million times or more. (or more ability 100 million times)
- Shielded Robot cable with UL and cUL at 600V,105°C. (Category : AVLV2, AVLV8)
Feature

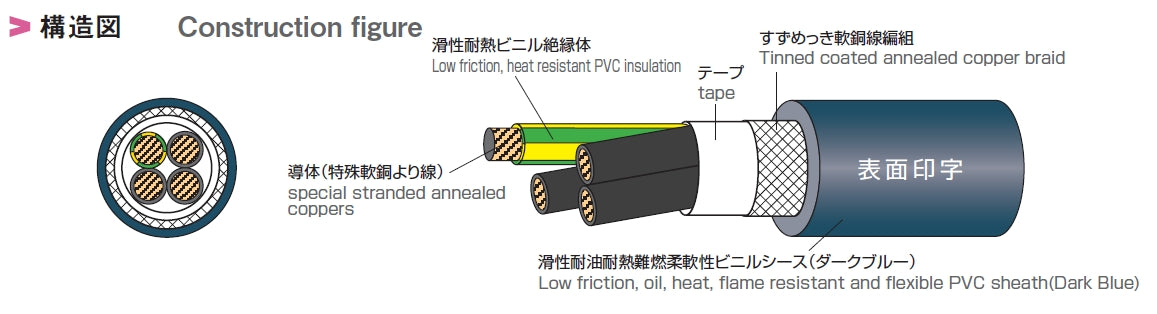

- Extremely fine special conductor use.
- Low friction and heat resistant PVC used for insulation.
- Oil and heat resistant PVC used for sheath.
- Low friction material used for sheath.
- Flame resisting : UL VW-1, cUL FT1.
