CL2/2464-3599-DS LF

Product Description

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Made to order should be confirm with us.

Application

• Cable for RS485,RS422.
• It is possible to use it as a signal, remote
  control tray cable.
• Double Shielded Electric equipment cable
  with UL and cUL at 300V,80℃.
  (Category : QPTZ,AVLV2,AVLV8)
• Obtaining UL Listed CL2, this cable
  compliants to NFPA70,79.

Feature

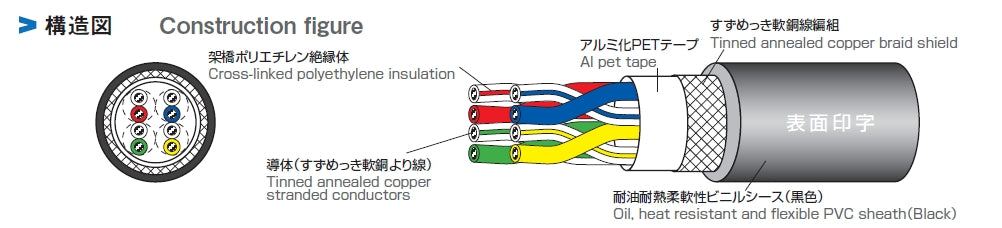

• Cross-linked polyethylene used for insulation.
• Oil, heat resistant and Flexible PVC sheath
  material is used.
• Characteristic impedance : 100±15Ω(5MHz)
  (differential).
• Flame resisting:UL VW-1,cUL FT1.

• It passes Vertical-Tray Flame Test of UL.

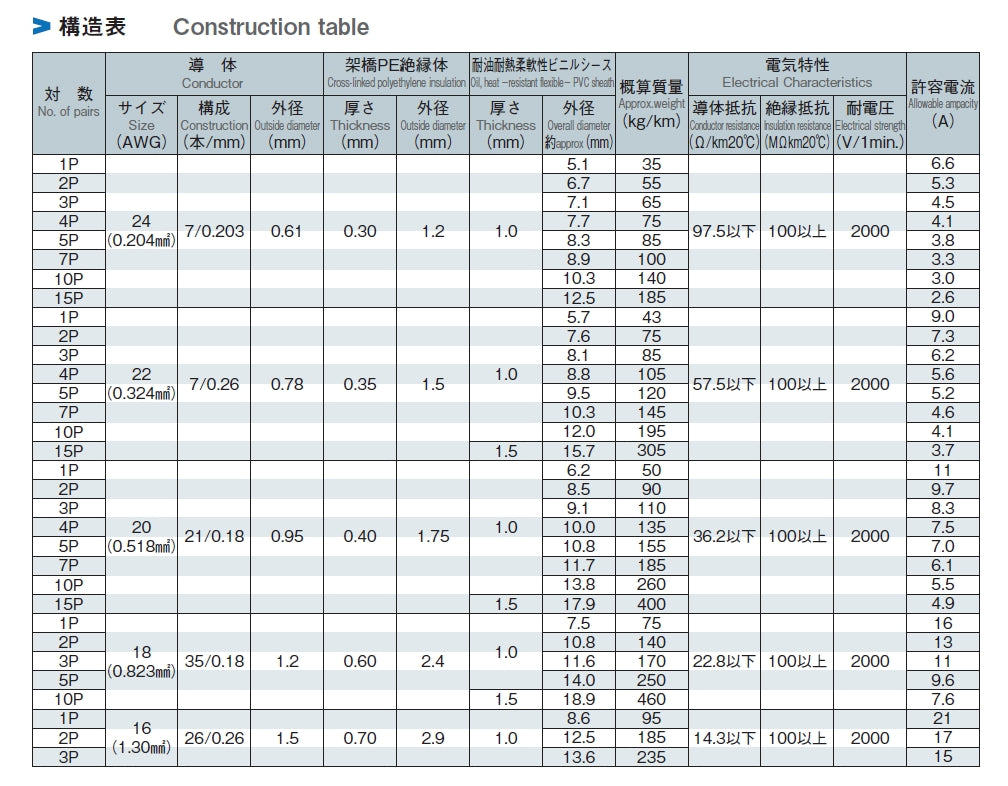

Allowable ampacity

・The allowable ampacity of this catalog is a value at one in the air construction and the ambient temperature 30℃.

・Allowable ampacity is calculated based on JCS0168.
・Please multiply the following correction coefficient by the ambient temperature.

●  Adjustment factors（at ambient temperature）

● Standard sales length

100m. (Sales by short length is available for large sizes. Please contact us which sizes are available. ）
