CE2 (Package Qty=100)
Available
Login to View Price
1Package（1Package=100）

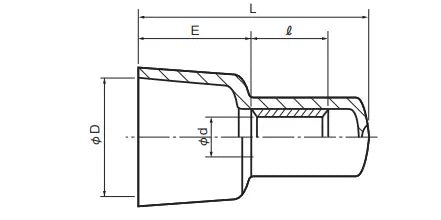

Specifications
- AWG: 16-14
- ød: 3mm / 0.12"
- øD: 8mm / 0.31"
- L: 21mm / 0.83"
- l: 7.3mm / 0.29"
- E: 9.6mm / 0.38"
- Wire Size Range for Stranded Wire: 1.00-3.00mm²
- Material (Connector Contact): Oxygen free copper tube (electro-tin-plated)
- Material (Insulator): Nylon
- Rated Voltage: 300V
- Rated Current: 12A
- Insulator Temperature: -40°F to 221°F / -40°C to 105°C
- Flame Retardance: UL 94 V-2 (V-0 available upon request)
- Standard Color: Milky white
- Standards: UL, CSA, JIS
- RoHS: RoHS 10
- Applicable Hand Tools: NH 38
- Appicable Crimpint Machines: NA 10, NA 3
- Applicable Applicator: N10AP-C
- Applicable Dies: N10 32, N3 14, N3 34
-
Manufacturer:NICHIFU
Product Description
1Package（1Package=100）
Specifications
- AWG: 16-14
- ød: 3mm / 0.12"
- øD: 8mm / 0.31"
- L: 21mm / 0.83"
- l: 7.3mm / 0.29"
- E: 9.6mm / 0.38"
- Wire Size Range for Stranded Wire: 1.00-3.00mm²
- Material (Connector Contact): Oxygen free copper tube (electro-tin-plated)
- Material (Insulator): Nylon
- Rated Voltage: 300V
- Rated Current: 12A
- Insulator Temperature: -40°F to 221°F / -40°C to 105°C
- Flame Retardance: UL 94 V-2 (V-0 available upon request)
- Standard Color: Milky white
- Standards: UL, CSA, JIS
- RoHS: RoHS 10
- Applicable Hand Tools: NH 38
- Appicable Crimpint Machines: NA 10, NA 3
- Applicable Applicator: N10AP-C
- Applicable Dies: N10 32, N3 14, N3 34
