CE1 (Package Qty=100)

Available
Login to View Price

1Package(1Package=100)

Specifications
  • AWG: 22-16

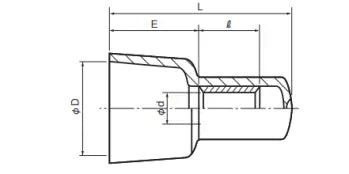

  • ød: 2.4mm / 0.09"
  • øD: 6.5mm / 0.26"
  • L: 18mm / 0.71"
  • l: 6.2mm / 0.24"
  • E: 8.8mm / 0.35"
  • Wire Size Range for Stranded Wire: 0.50-1.75mm²
  • Material (Connector Contact): Oxygen free copper tube (electro-tin-plated)
  • Material (Insulator): Nylon
  • Rated Voltage: 300V
  • Rated Current: 7A
  • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
  • Flame Retardance: UL 94 V-2 (V-0 available upon request)
  • Standard Color: Milky white
  • Standards: UL, CSA, JIS
  • RoHS: RoHS 10
  • Applicable Hand Tools: NH 38
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Applicator: N10AP-C
  • Applicable Dies: N10 31, N3 34
      • Manufacturer:
        NICHIFU
      Product Description

      1Package(1Package=100)

      Specifications
      • AWG: 22-16
      • ød: 2.4mm / 0.09"
      • øD: 6.5mm / 0.26"
      • L: 18mm / 0.71"
      • l: 6.2mm / 0.24"
      • E: 8.8mm / 0.35"
      • Wire Size Range for Stranded Wire: 0.50-1.75mm²
      • Material (Connector Contact): Oxygen free copper tube (electro-tin-plated)
      • Material (Insulator): Nylon
      • Rated Voltage: 300V
      • Rated Current: 7A
      • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
      • Flame Retardance: UL 94 V-2 (V-0 available upon request)
      • Standard Color: Milky white
      • Standards: UL, CSA, JIS
      • RoHS: RoHS 10
      • Applicable Hand Tools: NH 38
      • Appicable Crimpint Machines: NA 10, NA 3
      • Applicable Applicator: N10AP-C
      • Applicable Dies: N10 31, N3 34
