BT2-9-1 (Package Qty=100)

Available
Login to View Price

1Package(1Package=100)

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806

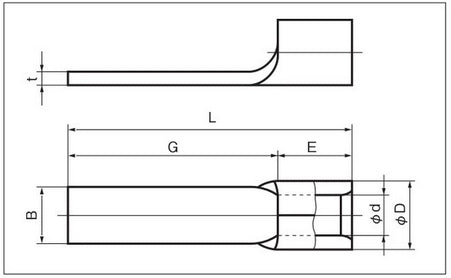

Specifications
  • AWG: 16-14
  • B: 2.2mm / 0.09"
  • t: 0.85mm / 0.03"
  • L: 13.5mm / 0.53"
  • G: 9mm / 0.35"
  • E: 4.5mm / 0.18"
  • øD: 4.2mm / 0.17"
  • ød: 2.3mm / 0.09"
  • Wire Size Range for Solid Wire (mm): 1.14-1.82
  • Wire Size Range for Stranded Wire (mmø|): 1.04-2.63
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA
          • Manufacturer:
            NICHIFU
          Product Description

          1Package(1Package=100)

          Features
          • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
          • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
          • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
          Specifications
          • AWG: 16-14
          • B: 2.2mm / 0.09"
          • t: 0.85mm / 0.03"
          • L: 13.5mm / 0.53"
          • G: 9mm / 0.35"
          • E: 4.5mm / 0.18"
          • øD: 4.2mm / 0.17"
          • ød: 2.3mm / 0.09"
          • Wire Size Range for Solid Wire (mm): 1.14-1.82
          • Wire Size Range for Stranded Wire (mmø|): 1.04-2.63
          • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
          • RoHS: RoHS 10
          • Standards: UL, CSA
