Remote System – Power & Signal, Wirelessly
The B&PLUS Remote System transmits power and signal simultaneously, enabling wireless control of proximity sensors, optical sensors, temperature sensors, and solenoid valves. This eliminates wiring on moving parts and enhances equipment design flexibility.
Applications
-

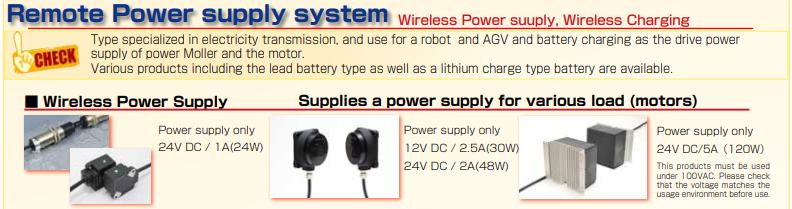

Wireless power supply for sensors
-
Switch signal transmission
-
Analog signal transmission
-

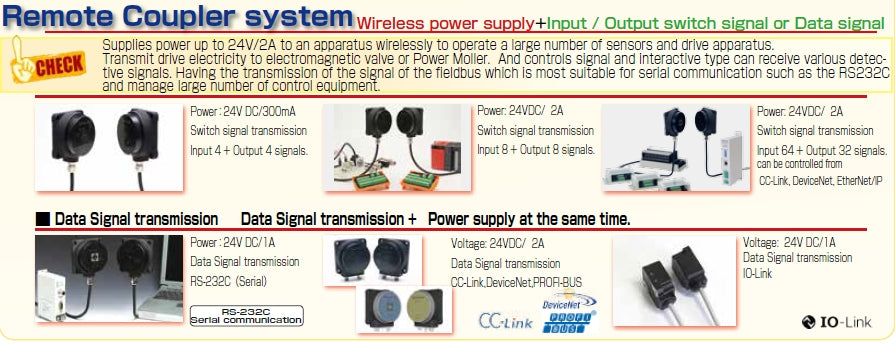

Remote coupler and power supply systems
B&PLUS technologies support smarter, safer, and more efficient manufacturing environments.
Product Line up

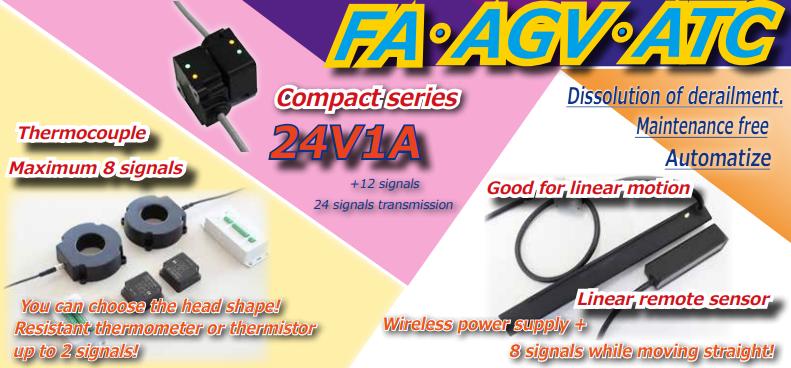

Thermocouple Maximum 8 signals
Linear remote sensor
(Moving Unit)
Switch signal :(Input signal ,output signal)
Proximity switch
Photo switch
Limit switch
solenoid valve etc.
Analog signal:
Displacement signals such as temperature and weight
Data signal RS-232C Serial Communication : IO-LINK, CC link, Device Net, PROFI BUS

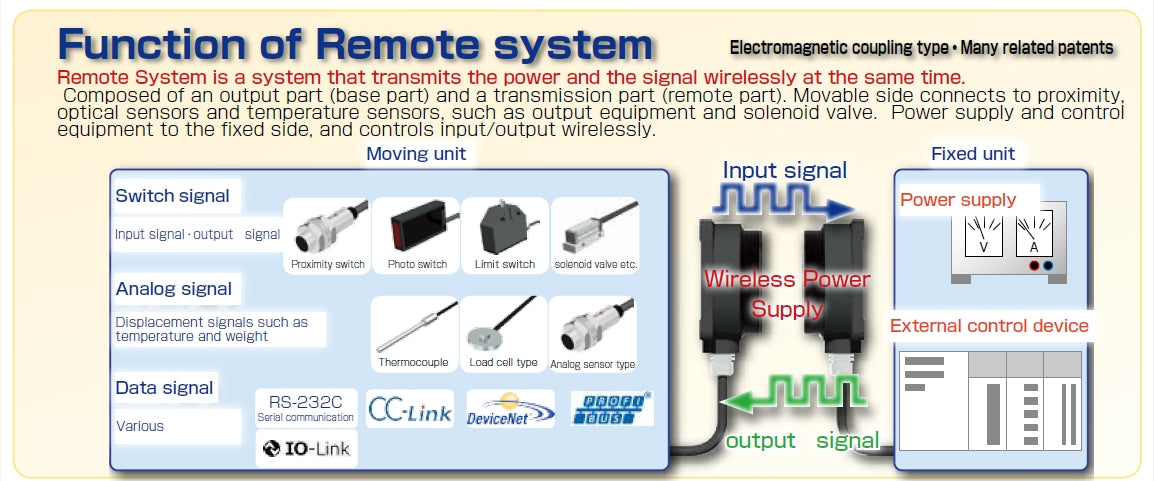

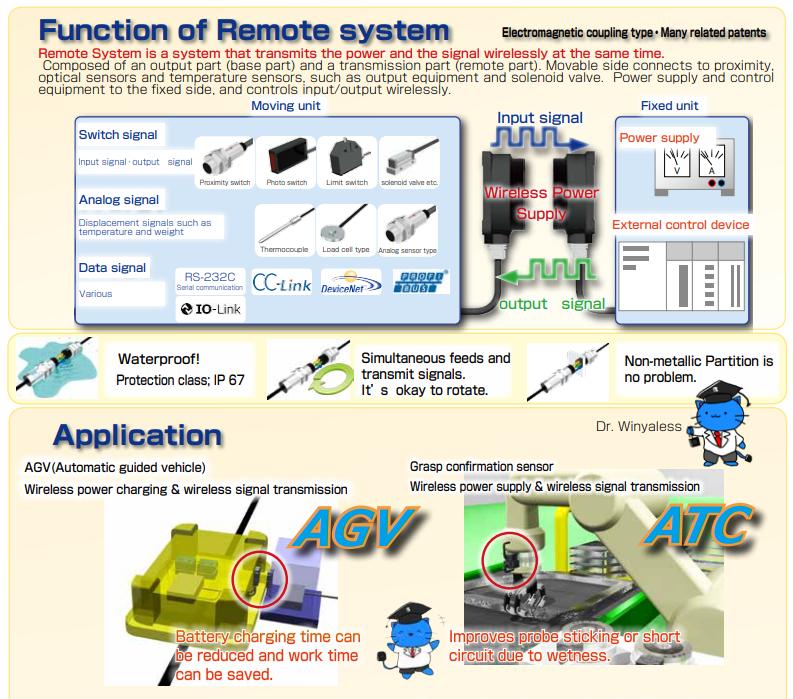

Remote System is a system that transmits the power and the signal wirelessly at the same time.
Composed of an output part (base part) and a transmission part (remote part). Movable side connects to proximity, optical sensors and temperature sensors, such as output equipment and solenoid valve. Power supply and control equipment to the fixed side, and controls input/output wirelessly.

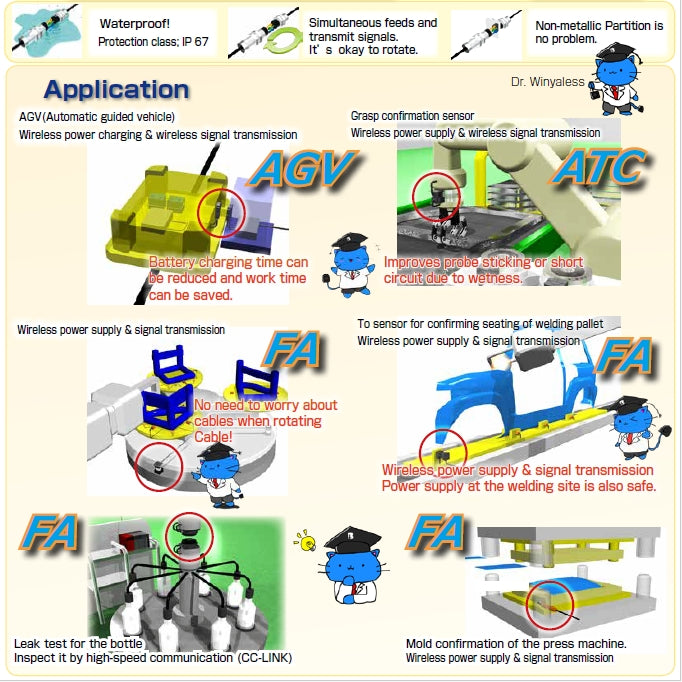

Application
AGV(Automatic guided vehicle)
Wireless power charging & wireless signal transmission
ATC(Automatic Tool Changer)
Grasp confirmation sensor
Wireless power supply & wireless signal transmission
Improves probe sticking or short circuit due to wetness.

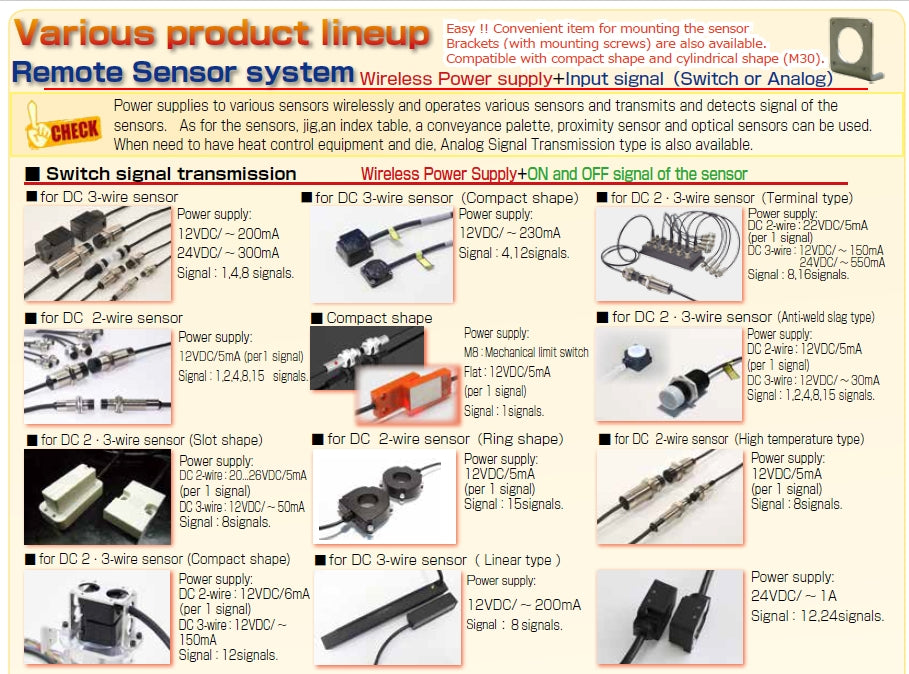

Various product lineup
Remote Sensor system Wireless Power supply+Input signal（Switch or Analog）
Power supplies to various sensors wirelessly and operates various sensors and transmits and detects signal of the sensors. As for the sensors, a conveyance palette, proximity sensor and optical sensors can be used. When need to have heat control equipment and die, Analog Signal Transmission type is also available.

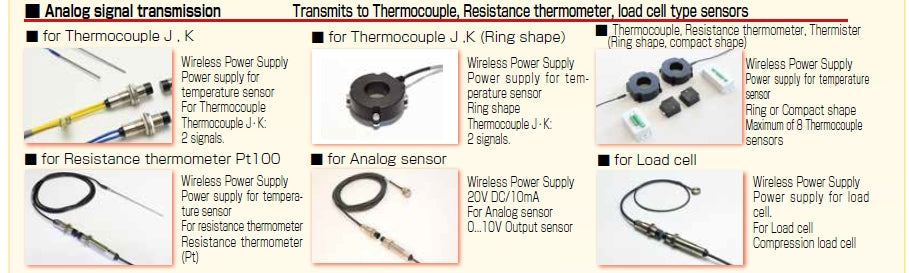

Analog signal transmission
Transmits to Thermocouple, Resistance thermometer, load cell type sensors
■For Thermocouple J , K：
Wireless Power Supply Power supply for temperature sensor For Thermocouple Thermocouple J・K: 2 signals.
■For Thermocouple J ,K (Ring shape）
Wireless Power Supply Power supply for tem-perature sensor
Ring shape Thermocouple J・K: 2 signals.
■ Thermocouple Resistance thermometer Thermistor.
Wireless Power Supply Power supply for temperature sensor
Ring or Compact shape Maximum of 8 Thermocouple sensors
■ For Resistance thermometer Pt100
Wireless Power Supply Power supply for tempera-ture sensor
For resistance thermometer Resistance thermometer (Pt)
■ For Analog sensor
Wireless Power Supply 20V DC/10mA For Analog sensor 0...10V Output sensor
■ For Load cell
Wireless Power Supply Power supply for load cell.
For Load cell Compression load cell
Why B&PLUS?
-
Over 40 years of expertise in wireless power supply development
-
Wide power range WPT solutions with options for signal transmission
-
Proven achievements and industry-leading product lineup
-
Reliable performance for moving equipment and rotating mechanisms
