15-35kV URD (Underground Residential Distribution) Cable (133% insulation level)
For Quotation and Order, please click the Contact Us button below.
MOQ or Made to order should be confirmed with us.
Product Description：
15-35kV URD (Underground Residential Distribution) Cable
Application：
For use on single-phase and three-phase primary underground distribution systems operating at 35 kV phase-to-phase at 100% insulation level.
Suitable for either direct burial or installation in ducts.

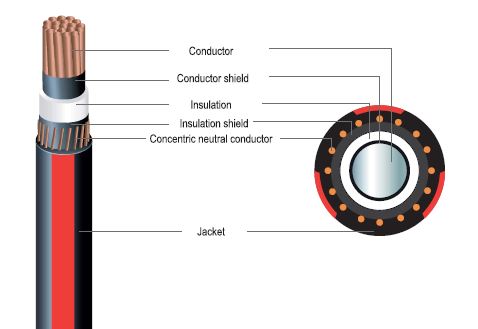

Construction：
Conductors: Compact or compressed stranded aluminum wires as per ICEA S-94-649
Conductor shield：Semi-conducting thermosetting
Insulation：TR-XLPE (Tree-retardant cross-linked polyethylene)
Insulation shield： Semi-conducting thermosetting
Concentric neutral conductor: Red, Yellow, Blue
Jacket： LLDPE (Linear low-density polyethylene)
Standard： ICEA S-94-649
Have been evaluated by UL in accordance with the Standard(s) at Medium Voltage Power Cable.
Certificate Number: UL-US-2566555-0 (UL 1072, Edition 4)

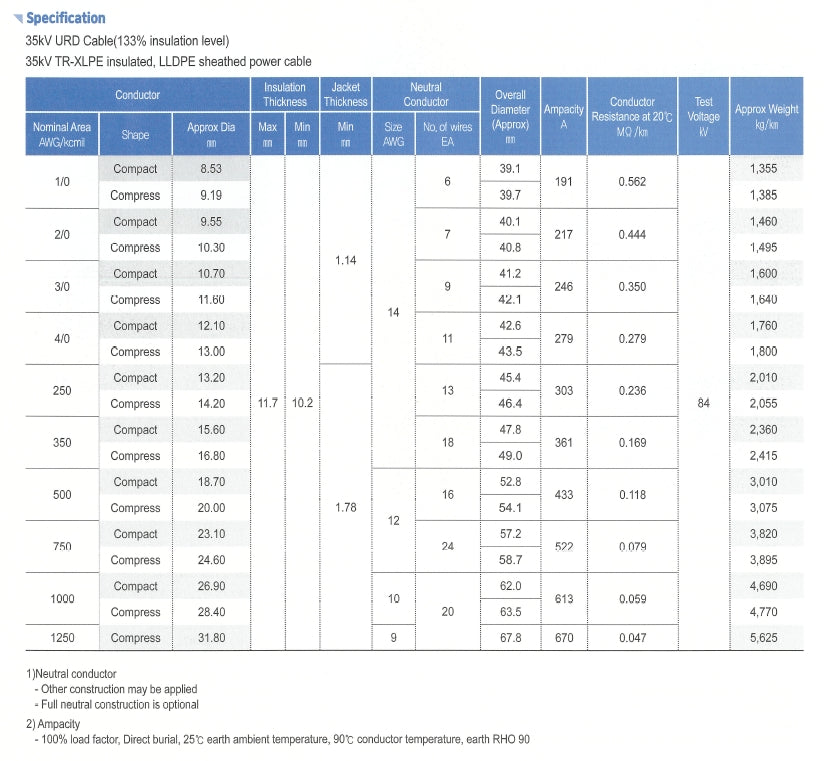

1) Neutral conductor
- Other construction may be applied
- Full neutral construction is optional
2) Ampacity
- 100% load factor, Direct burial, 25℃earth ambient temperature, 90℃conductor temperature, earth RHO 90
*"The available sizes currently are 500, 750, 1000, and 1250 kcmil. For other sizes, please feel free to contact us."
-
Manufacturer:KORYO CABLE
