1000V RFX-SB LF

Product Description

For Quotation, please click the Contact Us button below.

Standard sales length: 100m (1coil/100m≒328ft)

Cutting under 100m or Made to order should be confirmed with us.

Application

• Electric wire for wiring in power supply.


• Appropriate for wiring in a narrow place is excellent in flexibility.
• It is possible to use it for wiring medium or low-speed operational components of machine tool.

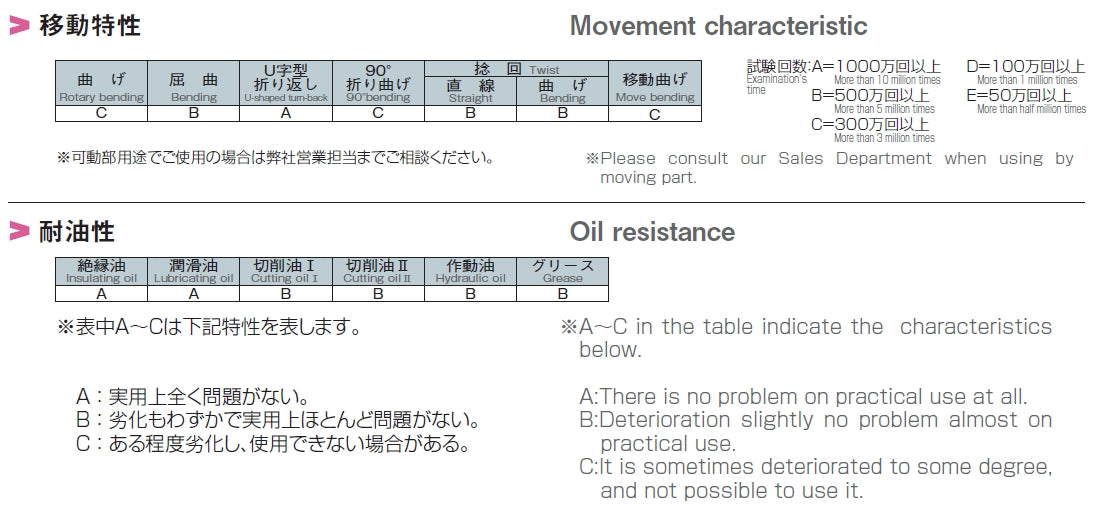

• Drag chain test 10 million times or more.

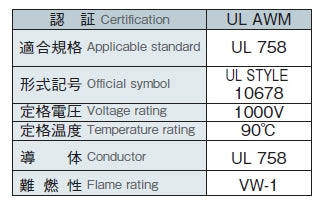

• Electrical insulated wire for internal Wiring equipment with UL and cUL at 1000V, 90°C. (Category : AVLV2)
• The shield (-SB) reduce the impact of external noise on the wire.

Feature

• Fine wire conductor use.
• Super flexible heat resistant PVC used for insulation.
• Oil, heat resistant and Flexible PVC sheath material is used.
• Flame resisting : UL VW-1.
