1000V RFX-MTW LF
Available
Login to View Price
For Quotation, please click the Contact Us button below.
Standard sales length: 100m (1coil/100m≒328ft)
Cutting under 100m or Made to order should be confirmed with us.
Application
- Electric wire for wiring in power supply.
-
※It is not possible to use as a power wire according to CSA standard.
- Appropriate for wiring in a narrow place is excellent in flexibility.
- It is possible to use it for wiring medium or low-speed operational components of machine tool.
- Drag chain test 10 million times or more.

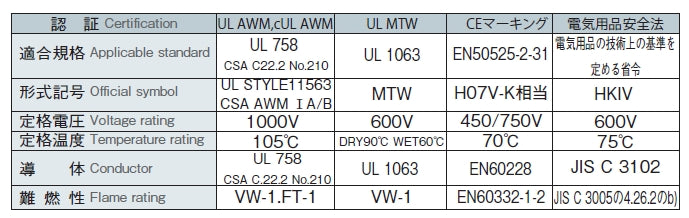

- Electrical insulated wire for internal Wiring equipment with UL and cUL at 1000V, 105°C. (Category : AVLV2.AVLV8.ZKHZ)
- CE marking
- Obtaining UL Listed MTW, this wire compliants to NFPA 70 and 79.
Feature
- Fine wire conductor use.
- Super flexible heat resistant PVC used for insulation.
- Flame resisting: UL VW-1 cUL FT-1.
-
Certification:
-
Category:Global Cables,Robot Cables
-
Manufacturer:TAIYO
-
Insulator:Heat resistant PVC
Product Description
For Quotation, please click the Contact Us button below.
Standard sales length: 100m (1coil/100m≒328ft)
Cutting under 100m or Made to order should be confirmed with us.
Application
- Electric wire for wiring in power supply.
-
※It is not possible to use as a power wire according to CSA standard.
- Appropriate for wiring in a narrow place is excellent in flexibility.
- It is possible to use it for wiring medium or low-speed operational components of machine tool.
- Drag chain test 10 million times or more.
- Electrical insulated wire for internal Wiring equipment with UL and cUL at 1000V, 105°C. (Category : AVLV2.AVLV8.ZKHZ)
- CE marking
- Obtaining UL Listed MTW, this wire compliants to NFPA 70 and 79.
Feature
- Fine wire conductor use.
- Super flexible heat resistant PVC used for insulation.
- Flame resisting: UL VW-1 cUL FT-1.
PDF Catalog
If you would like to download PDF catalog, please click below to register for an account.
Download
