HIFLON SD/20276 & HIFLON SD-SB/20276(Shield Type) (1coil/100m≒328ft)

Product Description

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Make to order should be confirm with us.

Hiflon Cable

The Hiflon Cable incorporates HIFLON wires, fluor resin, PVC, and other materials as sheathing components. By using fluor resin as the cable's insulator, it delivers exceptional insulation properties, enabling the use of fine wires and significantly improving installation density. Primarily used for wiring signal and power lines, it's extensively used in instrumentation cables in robot operating units, medical equipment, computers, and similar devices.

Features

1.The use of ETFE fluoropolymer as an insulating material demonstrates excellent flexibility.

2.The use of two-color extrusion for insulator identification makes wiring tasks easy and prevents wiring errors.

3.The slippery PVC for the sheath material is particularly beneficial in reducing friction and tangling of the cable bundling.

Usage

1.For cable veyor(cable carrier) wiring.
2.The movable parts, including the internal rotation and bending parts inside the robot.

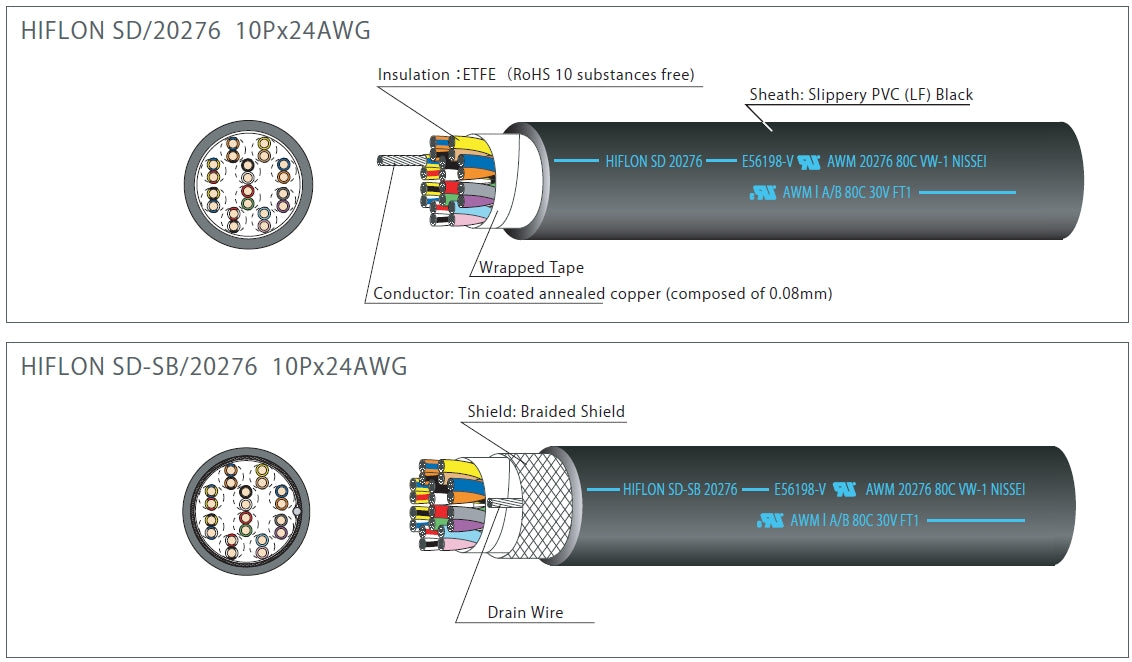

Cable image
