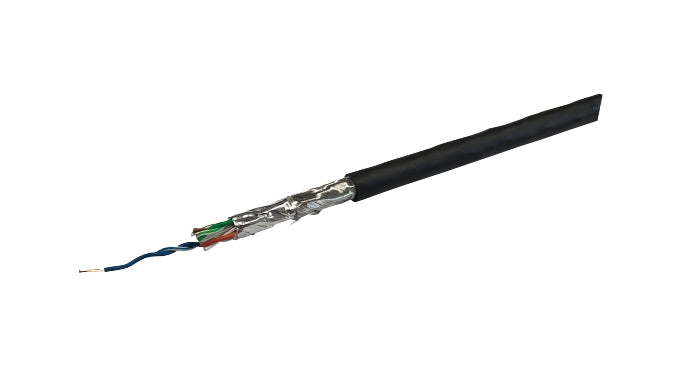

KETH6A-SWZ 26AWGX4P (1coil/100m≒328ft)

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Make to order should be confirm with us.

The KETH Series are shielded twisted pair cables designed for use in EtherNet and other industrial Ethernet connection and PLC to-PLC, PLC-to-host computer and other Ethernet connection. The KETH Series are designed using oil resistant PVC for their sheaths, allowing them to be used for cable wiring under environment where oil splashing may occur. The KETH Series cables are designed to be attached to various types of connectors. We also offers services necessary for such attachment.

Features

• KETH6A-SWZ is of 26AWG stranded conductor type, being characterized by its flexibility.
• KETH-6A-SWZ is designed with wire shield over AL-PET tape-wound spirally for twist resistance.

• KETH-6A-SWZ is a cable meeting the enhanced category 6A requirements.
• Be compliant with UL758 (AWM STYLE 20276).
• This cable is suitable for motion and can be used for
  C-Tracks and End Of Arm tooling applications.
• Oil-resistant sheath for use in severe sites where
  oil splash is present.
• Compatible with machine vision connectors.
  Suitable for screw lock RJ-45 plugs
  (ex.,TEPO2-BLK TEPO03-BLK Telegadrtner Limited)

Size：26AWG × 4P
Shield：Aluminum/polyester laminate tape-wound spirally for twist resistance
Sheath：Oil and heat resistant PVC
Sheath color：BLACK
Sheath Overall diameter：Approx.6.9㎜ (0.272 inch)
Maximum transmission distance (20°C)：40m
Adaptation standard：
10G BASE-T  Category 6A

UL758(AWM STYLE 20276)

*What is Spiral Wire Shield?
Compared to the braided wire shield, the spiral wire shield
over Al-PET tape will make the structure easy to assemble
because there is no need to remove the shield in the
termination process of the cable.
This shield is designed to accommodate complex movements
of the cable i.e. twisting.

Construction
